ASTM A335 P22 Pipe

ASTM A335 P22 Pipe

ASTM A335 P22 pipe is high-quality alloy-steel pipes designed to withstand high-temperature and high-pressure environments.

Download PDF

ASTM A335 P22 pipe is a seamless alloy steel pipe that is hot-rolled or cold-drawn and contains various elements such as chromium and molybdenum. It is used in high-temperature applications and has excellent resistance to corrosion and oxidation.

The characteristics and properties of ASTM A335 P22 alloy steel pipe include:

  1. High-temperature resistance: ASTM A335 P22 alloy steel pipe can withstand high temperatures of up to 600°C (1112°F), making it ideal for high-temperature applications such as steam pipelines and heat exchangers.
  2. Excellent corrosion resistance: ASTM A335 P22 alloy steel pipe performs well in corrosive environments found in industries such as chemical processing and oil and gas.
  3. High strength: ASTM A335 P22 alloy steel pipe has high tensile and yield strength, making it ideal for high-pressure applications.
  4. Durable and long-lasting: ASTM A335 P22 alloy steel pipe provides a long service life, reducing maintenance costs and downtime.
  5. Excellent weldability: ASTM A335 P22 alloy steel pipe can be easily welded using traditional methods without the need for preheating or post-weld heat treatment.

Applications of ASTM A335 P22 alloy steel pipe include:

  1. Power generation: Due to its high-temperature resistance, excellent corrosion resistance, and high-pressure resistance, ASTM A335 P22 alloy steel pipe is widely used in steam pipelines and boiler components in power plants.
  2. Oil and gas industry: ASTM A335 P22 alloy steel pipe can be used for pipelines transporting crude oil, natural gas, and petroleum products as well as processing equipment, due to its excellent high-temperature and high-pressure performance.
  3. Chemical industry: ASTM A335 P22 alloy steel pipe can be used for pipelines transporting corrosive liquids and gases, high-temperature reaction vessels, and other high-temperature and high-pressure applications.
  4. Petrochemical industry: ASTM A335 P22 alloy steel pipe can be used for processing and transporting petrochemical products, such as benzene, ethylene, and propylene.

In conclusion, ASTM A335 P22 alloy steel pipe is a high-strength, durable, and high-temperature resistant pipe material with excellent corrosion resistance, high-pressure resistance, excellent weldability, and a long service life. Its unique properties make it an ideal choice for various high-temperature and high-pressure applications, especially in power generation, chemical processing, and oil and gas industries.

About ASTM A335 P22 Pipe

A335/SA335 Grade P22 Alloy Steel Seamless Pipes are Carbon steel pipes with addition of chromium, molybdenum, and sometimes vanadium. Chromium, or chrome, improves high-temperature strength, increases oxidation resistance and raises the tensile, yield and hardness at room temperatures.

What is ASTM A335 P22?

ASTM A335 P22 is a grade of seamless ferritic alloy steel pipe for high-temperature service. It is commonly used in power generation and petrochemical industries where high temperature and pressure resistance is required. The alloy composition of ASTM A335 P22 includes chromium (2.25-2.75%), molybdenum (0.87-1.13%), and traces of other elements such as carbon, manganese, silicon, and phosphorus. The pipe is typically supplied in a normalized and tempered condition and can be heat treated for increased toughness and strength. It is available in various sizes and thicknesses and can be customized to suit specific requirements.

The steel material shall conform to chemical composition, tensile property, and hardness requirements. Each length of pipe shall be subjected to the hydrostatic test. Also, each pipe shall be examined by a non-destructive examination method in accordance to the required practices.

The different mechanical test requirements for pipes, namely, transverse or longitudinal tension test, flattening test, and hardness or bend test are presented.

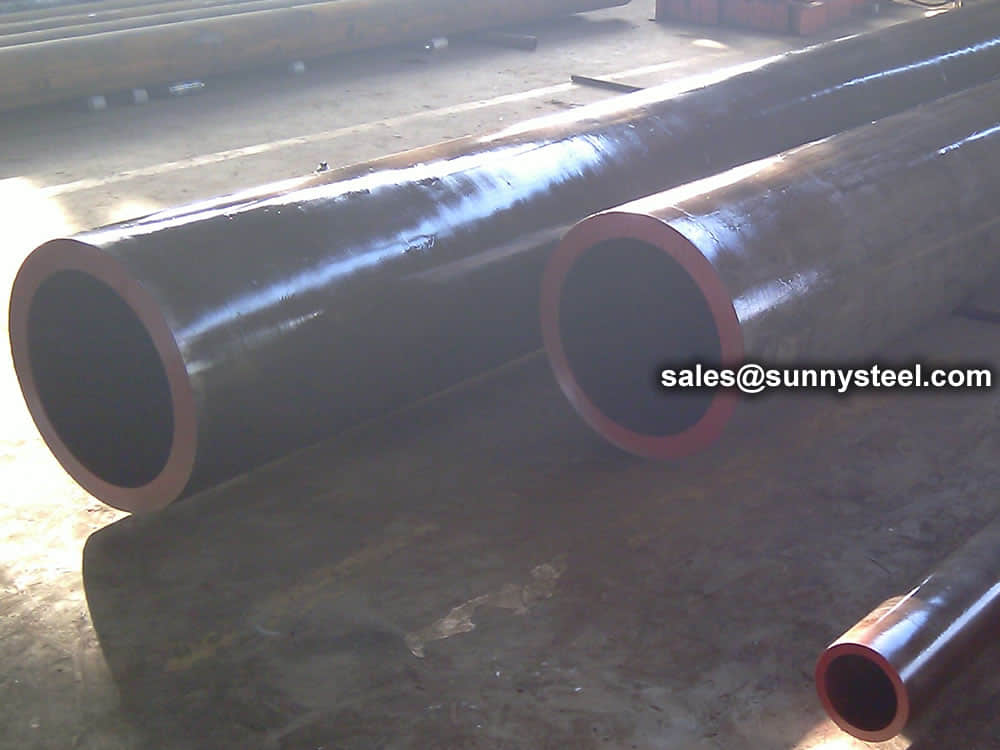

ASTM A335 P22 Pipe
ASTM A335 P22 Pipe
ASTM A335 P22 Pipe
ASTM A335 P22 Pipe
ASTM A335 P22 Pipe
ASTM A335 P22 Pipe

Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

Chemical Composition(%) of ASTM A335 P22 Pipe

What are the materials in P22 pipe?

The chemical composition in P22 seamless pipes are carbon 0.05-0.15%, manganese from 0.30-0.60%, silicon up to 1%, chromium up to 2.6%, and molybdenum and silicon like other small elements for the chemical balance.

Compositions Data
UNS Designa-tion K11597
Carbon 0.05-0.60
Manganese 0.30-0.60
Phosphorus(max.) 0.025
Sulfur(max.) 0.025
Silicon 0.50-1.00
Nickel
Chromium 1.00-1.50
Molybdenum 0.44-0.65
Other Elements

Mechanical properties of ASTM A335 P22 Pipe

Properties Data
Tensile strength, min, (MPa) 415 Mpa
Yield strength, min, (MPa) 205 Mpa
Elongation, min, (%), L/T 30/20

What is the yield strength of ASTM A335 P22?

ASTM A335 P22 pipes have high weldability and ductility making it ideal for operations that consist if bending, flanging or vastoning. These pipes have a minimum tensile strength of 415 MPA and minimum yield strength of 205 MPA.

Related ASTM A335 P22 Pipe

ASTM A335 Chrome Moly Pipe

What is ASTM A335 material?

ASTM A335 is a standard specification for seamless ferritic alloy-steel pipe intended for high-temperature service. This material is commonly used in power plants, refineries, and other industrial settings where high-temperature and high-pressure conditions are encountered. The "A" in ASTM A335 stands for "alloy," indicating that the pipe is made from alloy steel, which typically includes elements such as chromium, molybdenum, and sometimes vanadium to enhance its high-temperature properties.

Scope

1 This specification covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high-temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Selection will depend upon design, service conditions, mechanical properties, and high-temperature characteristics.

2 Several grades of ferritic steels (see Note 1) are covered. Their compositions are given in Table 1.
Note 1.. Ferritic steels in this specification are defined as low- and intermediate-alloy steels containing up to and including 10% chromium.

3 Supplementary requirements (S1 to S7) of an optional nature are provided. These supplementary requirements call for additional tests to be made, and when desired, shall be so stated in the order together with the number of such tests required.

4 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification. The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.

Note The dimensionless designator NPS (nominal pipe size) has been substituted in this standard for such traditional terms as "nominal diameter", "size", and "nominal size".

Why ASTM A335 seamless steel pipe is popular in high temperature application?

ASTM A335 Seamless Steel Pipe is generally named chrome moly pipe for the chemical elements- Molybdenum and Chromium. Molybdenum improves steel performances as steel strength, elastic limit, wear resistance, impact and hardenability.

ASTM A335 seamless steel pipe is a popular choice for high-temperature applications due to several key reasons:

  1. High-temperature resistance: ASTM A335 seamless steel pipe is designed to withstand high temperatures up to 600°C (1112°F), making it an ideal material for high-temperature applications such as steam pipelines and heat exchangers.
  2. Corrosion resistance: ASTM A335 seamless steel pipe exhibits good corrosion resistance in aggressive environments, such as those found in chemical processing and oil and gas industries.
  3. High strength: ASTM A335 seamless steel pipe has high tensile strength and yield strength, making it ideal for use in high-pressure applications.
  4. Good weldability: ASTM A335 seamless steel pipe can be easily welded using traditional methods, with no need for preheating or post-weld heat treatment.
  5. Uniform properties: ASTM A335 seamless steel pipe is produced using a consistent manufacturing process, ensuring that each pipe has uniform properties and quality.
  6. Cost-effective: Despite its superior properties, ASTM A335 seamless steel pipe remains an affordable option for high-temperature applications.

In summary, ASTM A335 seamless steel pipe is popular in high-temperature applications due to its high-temperature resistance, corrosion resistance, high strength, good weldability, uniform properties, and cost-effectiveness. Its combination of properties makes it an ideal choice for use in various high-temperature and high-pressure applications, especially in the power generation, chemical processing, and oil and gas industries.

Referenced Documents (purchase separately)

Chemical Composition(%) of ASTM A335 pipe

ASTM Specification pipe confirming to ASTM A335 shall have the following chemical properties. Tensile and Hardness Requirements The tensile properties of the ASTM A335 pipe shall conform to the requirements as prescribed. Pipe of Grades P91, P92, and P122 shall have a hardness not exceeding 250 HB/265 HV [25 HRC]. For pipe of Grades P91, P92, P122, and P911, Brinell, Vickers, or Rockwell hardness tests shall be made on a specimen from each lot (see Note 7). These pipe bear high resistance to rupture at high temperature and pressures. With hydrogen crack resistance and sulfide stress corrosion cracking chrome moly pipe are highly preferred over Carbon pipe.

Grade C Mn P max S max Si Cr Mo V N Others
P1 0.1-0.2 0.3-0.8 0.025 0.025 0.1-0.5 1.0-1.5 0.44-0.65 / / /
P2 0.1-0.2 0.3-0.61 0.025 0.025 0.1-0.3 0.5-0.81 0.44-0.65 / / /
P5 ≤0.15 0.3-0.6 0.025 0.025 ≤0.5 4.0-6.0 0.45-0.65 / / /
P5b ≤0.15 0.3-0.6 0.025 0.025 1.0-2.0 4.0-6.0 0.45-0.65 / / /
P5c ≤0.12 0.3-0.6 0.025 0.025 ≤0.5 4.0-6.0 0.45-0.65 / / /
P9 ≤0.15 0.3-0.6 0.025 0.025 0.25-1.0 8.0-10.0 0.9-1.1 / / /
P11 0.05-0.15 0.3-0.6 0.025 0.025 0.5-1.0 1.0-1.5 0.44-0.65 / / /
P12 0.05-0.15 0.3-0.61 0.025 0.025 ≤0.5 0.8-1.25 0.44-0.65 / / /
P15 0.05-0.15 0.3-0.6 0.025 0.025 1.15-1.65 / 0.44-0.65 / / /
P21 0.05-0.15 0.3-0.6 0.025 0.025 ≤0.5 2.65-3.35 0.8-1.06 / / /
P22 0.05-0.15 0.3-0.6 0.025 0.025 ≤0.5 1.9-2.6 0.87-1.13 / / /
P23 0.04-0.1 0.1-0.6 0.03 0.01 ≤0.5 1.9-2.6 0.05-0.3 0.2-0.3 ≤0.015 Cb(0.02-0.08) ,B(0.001-0.006)
Al(≤0.03), W(1.45-1.75)
Ni(≤0.4), Ti(0.005-0.060)
P24 0.05-0.1 0.3-0.7 0.02 0.01 0.15-0.45 2.2-2.6 0.9-1.1 0.2-0.3 ≤0.012 Ti(0.06-0.1), Al(≤0.02)
B(0.0015-0.007)
P36 0.1-0.17 0.8-1.2 0.03 0.025 0.25-0.50 ≤0.30 0.25-0.50 ≤0.02 ≤0.02 Ni(1.0-1.3), Cu(0.5-0.8)
Cb(0.015-0.045), Al(≤0.050)
P91 0.08-0.12 0.3-0.6 0.02 0.01 0.2-0.5 8.0-9.5 0.85-1.05 0.18-0.25 0.03-0.07 Ni(≤0.4), Al(≤0.02), Cb(0.06-0.1)
Ti(≤0.01), Zr(≤0.01)
P92 0.07-0.13 0.3-0.6 0.02 0.01 ≤0.50 8.5-9.5 0.3-0.6 0.15-0.25 0.03-0.07 Ni(≤0.4), AL(≤0.02), Cb(0.04-0.09)
W(1.5-2.0), B(0.001-0.006)
Ti(≤0.01), Zr(≤0.01)
P122 0.07-0.14 ≤0.7 0.02 0.01 ≤0.50 10.0-11.5 0.25-0.6 0.15-0.3 0.04-0.1 Ni(≤0.5), Al(≤0.02), Ti(≤0.01)
W(1.5-2.5), Cu(0.3-1.7), Zr(≤0.01)
Cb(0.04-0.1), B(0.0005-0.005)
P911 0.09-0.13 0.3-0.6 0.02 0.01 0.1-0.5 8.5-9.5 0.9-1.1 0.18-0.25 0.04-0.09 Ni(≤0.4), Cb(0.06-0.1)
B(0.0003-0.006),Al(≤0.02)
W(0.9-1.1),Ti(≤0.01),Zr(≤0.01)

Chrome Moly Pipes: Werkstoff vs EN vs ASTM

ASTM A335 pipe may be either hot finished or cold drawn with the finishing treatment as required in Grade P2 and P12 – The steel shall be made by coarse- grain melting practice. Specific limits, if any, on grain size or deoxidation practice shall be a matter of agreement between the manufacturer and purchaser.

Werkstoff /DIN EN ASTM
1.5415 16Mo3 A335 Grade P1
1.7335 13CrMo4-5 A335 Grade P11, P12
1.738 10CrMo9-10 A335 Grade P22
1.7362 X11CrMo5 A335 Grade P5
A335 Grade P9
1.4903 X10CrMoVNb9-1 A335 Grade P91

Tensile Requirements

Tensile Strength, min., psi P-5 P-9 P-11 P-22 P-91
ksi 60 60 60 60 85
MPa 415 415 415 415 585
Yield Strength, min., psi
ksi 30 30 30 30 60
MPa 205 205 205 205 415

Product Analysis At the request of the purchaser, an analysis of two pipe from each lot shall be made by the manufacturer. A lot of ASTM A335 pipe shall consist of the following: NPS Designator Under 2 400 or fraction thereof 2 to 5 200 or fraction thereof 6 and over 100 or fraction thereof. Note: ASTM A335 P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC].

Mechanical properties of ASTM A335

Grade  Tensile strength  Yield strength
 P1,P2  380  205
 P12  415  220
 P23  510  400
 P91  585  415
 P92,P11  620  440
 P122  620  400

It also enhances the corrosion resistance of steel, and inhibits pitting. Chromium (or chrome) is the essential constituent of stainless steel. Any steel with 12% or more Chrome is considered stainless. Chrome is virtually irreplaceable in resisting oxidation at elevated temperatures. Chrome raises the tensile, yield, and hardness at room temperatures. The composition chrome moly alloy steel pipe make it ideal for use in power plants, refineries, petro chemical plants, and oil field services where fluids and gases are transported at extremely high temperatures and pressures.

Heat Treatment Requirements

Grade Heat Treatment Type
P5, P9, P11, and P22
Normalizing Temperature Range F [C] Subcritical Annealing or Tempering
Temperature Range F [C]
A335 P5 (b,c) Full or Isothermal Anneal
Normalize and Temper ***** 1250 [675]
Subcritical Anneal (P5c only) ***** 1325 – 1375 [715 - 745]
A335 P9 Full or Isothermal Anneal
Normalize and Temper ***** 1250 [675]
A335 P11 Full or Isothermal Anneal
Normalize and Temper ***** 1200 [650]
A335 P22 Full or Isothermal Anneal
Normalize and Temper ***** 1250 [675]
A335 P91 Normalize and Temper 1900-1975 [1040 - 1080] 1350-1470 [730 - 800]
Quench and Temper 1900-1975 [1040 - 1080] 1350-1470 [730 - 800]

Material & Manufacture

Pipe may be either hot finished or cold drawn with the finishing heat treatment noted below.

Heat Treatment

Mechanical Tests Specified

Notes for Hardness Test

Notes for Bend Test

FAQs About ASTM A335 Chrome Moly Pipe

Q1. What industries commonly use ASTM A335 Chrome Moly Pipe?
It is extensively used in power generation, petrochemicals, oil and gas, and aerospace industries.

Q2. Can ASTM A335 Chrome Moly Pipe withstand high pressures?
Yes, it is known for its ability to handle high-pressure environments effectively.

Q3. Is ASTM A335 Chrome Moly Pipe susceptible to corrosion?
While it can be prone to corrosion, proper coatings can make it highly resistant.

Q4. How is ASTM A335 Chrome Moly Pipe manufactured?
It is produced through a seamless manufacturing process, ensuring its robustness.

Q5. What sets ASTM A335 Chrome Moly Pipe apart from seamed pipes?
The seamless construction eliminates potential weak points, making it more reliable under pressure.

Seamless tube processing

With years of expertise, we provide a diverse array of steel tube processing options. From sawing and machining tube blanks to intricate bending and upsetting operations, we actively assist you throughout your projects.

Our capabilities extend to eccentricity reduction and concentricity enhancement through turning and grinding. We excel in creating complex geometries using processes like rotary swaging and axial forming. Additionally, we offer property modifications via partial heat treatment, ensuring tailored solutions for your specific needs.

Variable wall thicknesses

Variable wall thicknesses

Drilling / stamping / lasering

Drilling / stamping / lasering

Peeling / roller burnishing

Peeling / roller burnishing

Cold forming

Cold forming

Cutting

Cutting

Beveling

Beveling

Deburring

Deburring

Thread rolling / threading

Thread rolling / threading

Partial hardening

Partial hardening

Turning / milling / grinding

Turning / milling / grinding

Reducing / expanding

Reducing / expanding

Machining

Machining

application

Application

Alloy steel pipes are ideally suitable for chemical, petrochemicals, and other energy-related applications.

The alloy steel pipe adopts high quality carbon steel, alloy structural steel and stainless & heat resisting steel as raw material through hot rolling or cold drawn to be made.

Alloy steel can be used in process area where carbon steel has limitation such as

As an important element of steel products, alloy steel pipe can be divided into seamless steel pipe and welded steel pipe according to the manufacturing technique and tube billet shape.

Here you can see the common alloy steel grade that you will come across.

Why the application of alloy steel pipe is wider than others

There are many kinds of materials used for transport in industrial production. Specifically we will have more choices and it is not limited to the use of alloy steel pipe. But even in the face of more choices, many people tend to choose alloy steel pipe. People make their own choices will have their own reasons. This means the alloy steel pipe application has its own advantages. Compared with transmission lines made of other materials, after it meets the basic application requirements, its quantity is lighter. Then in the practical application of alloy steel pipe, it will have more advantages because of this. Besides its physical characteristic advantage, it also has economic advantages. The wide application of alloy steel pipe is with kinds of reasons. So in practical usage, we can exploit the advantages to the full, in this way can we get more profits in these applications of alloy steel pipe.

What requirements should alloy steel pipe application meet

The transportation of kinds of gases or liquids in production needs to rely on alloy steel pipe. This shows that the actual role of alloy steel pipe application is important. High temperature resistant and low temperature resistant is the tolerance of temperature. In the practical application of alloy steel pipe, there will be many materials need to be transported. However their temperatures are not the same. So this can be the basic requirement to alloy steel pipe. It needs more corrosion resistance. Corrosion resistant material is the best material during transporting, because it is corrosion resistant. So it can be used in more occasions. And it is definitely very convenient for users.

The biggest advantages of alloy steel pipe

Can be 100% recycled, environmentally friendly, energy-saving, resource conservation, national strategy, national policy to encourage the expansion of the field of application of high-pressure alloy pipe. Of alloy steel pipe total consumption accounted steel in the proportion is only half of the developed countries, to expand the field of use of the alloy steel pipe to provide a wider space for the development of the industry. The future needs of the average annual growth of China’s high-pressure alloy steel pipe long products up to 10-12%.

Specification, standard and identification of alloy steel pipes

Alloy Steel pipe contains substantial quantities of elements other than carbon such as nickel, chromium, silicon, manganese, tungsten, molybdenum, vanadium and limited amounts of other commonly accepted elements such as manganese, sulfur, silicon, and phosphorous.

Industries We Serve

Our team of experienced sales specialists proudly partners with gas and chemical processors, power generation plants, oil refineries, and related industries to offer piping components and value-added services.

The biggest advantages of alloy steel pipe can be 100% recycled, environmentally friendly, energy-saving, resource conservation, national strategy, national policy to encourage the expansion of the field of application of high-pressure alloy pipe. Of alloy tube total consumption accounted steel in the proportion is only half of the developed countries, to expand the field of use of the alloy tube to provide a wider space for the development of the industry. According to the Chinese Special Steel Association alloy pipe Branch Expert Group, the future needs of the average annual growth of China’s high-pressure alloy pipe long products up to 10-12%.

Q&A

Our team of experienced sales specialists proudly partners with gas and chemical processors, power generation plants, oil refineries, and related industries to offer piping components and value-added services.

The most important and desired changes in alloy steel are

Alloy steels are made by combining carbon steel with one or several alloying elements, such as manganese, silicon, nickel, titanium, copper, chromium and aluminum. These metals are added to produce specific properties that are not found in regular carbon steel. The elements are added in varying proportions (or combinations) making the material take on different aspects such as increased hardness, increased corrosion resistance, increased strength, improved formability (ductility); the weldability can also change.

Alloying Elements & Their Effects

Pipes, Tubes and Hollow Sections

Norms

Grade

Alloying Elements

Commonly used alloying elements and their effects are listed in the table given below.

Alloying Elements Effect on the Properties
Chromium Increases Resistance to corrosion   and oxidation. Increases hardenability and wear resistance. Increases high   temperature strength.
Nickel Increases hardenability. Improves   toughness. Increases impact strength at low temperatures.
Molybdenum Increases hardenability, high   temperature hardness, and wear resistance. Enhances the effects of other   alloying elements. Eliminate temper brittleness in steels. Increases high   temperature strength.
Manganese Increases hardenability. Combines   with sulfur to reduce its adverse effects.
Vanadium Increases hardenability, high   temperature hardness, and wear resistance. Improves fatigue resistance.
Titanium Strongest carbide former. Added to   stainless steel to prevent precipitation of chromium carbide.
Silicon Removes oxygen in steel making.   Improves toughness. Increases hardness ability
Boron Increases hardenability. Produces   fine grain size.
Aluminum Forms nitride in nitriding steels.   Produces fine grain size in casting. Removes oxygen in steel melting.
Cobalt Increases heat and wear   resistance.
Tungsten Increases hardness at elevated   temperatures. Refines grain size.
