Cast basalt

Cast basalt is a kind of silicate crystalline material after producing and processing, it made of natural rock (basalt, diabase and other basite) or some industrial waste as the main raw materials, by melting, casting, crystallization, annealing and other processes.

Cast basalt have an excellent performance of high abrasive and high corrosion resistance. Cast basalt products mainly include cast basalt tile, cast basalt pipe, cast basalt lined steel pipe, clamp cast basalt pipe, cast basalt wear-resistant slip joints, cast basalt wear-resistant valves, cast basalt powder and various wear-resistant corrosion-resistant cement which use cast basalt powder as raw material. Cast basalt products have been widely used in industrial sectors which have serious wear and corrosion of parts and equipment, such as electric power, mining, metallurgy, coal, chemicals, construction and so on. Cast basalt is an indispensable non-metallic industrial new material in the development of modern industry.

Friction Resistance - As more material is passed over Cast Basalt it gets polished up thereby reducing friction further. Cast Basalt improves in service after getting polished. Wetting also improves its performance in practical applications.

Impact Resistance - Direct Impact Resistance at 90 degree is low like all other ceramics, but it can be increased with proper installation by reducing the angle of impact. Cast Basalt is the best wherever sliding abrasion exists. Moreover, external impact strength of composite basalt pipe (enclosed in M.S. Shell) is always more than that of bare Ni-hard Pipe.

Cast basalt

Chemical Resistance Cast Basalt is almost absolutely acid/alkali resistant (except Hydrofluoric Acid) and hence corrosion resistant.
Weight and Sizes - Basalt Tiles are available in regular shape square of 200 x 200 x 30 mm thick, weighing approx. 90 kg/sq m; whereas bends and pipes are lined using Basalt

  • Cylinders of various standard sizes from 50NB upto 500NB.
  • Temperature - Cast Basalt withstands temperature up to 450 o C
  • Life - Life of basalt-lined pipe is estimated to be 7 to 10 times that of Cast Iron, and 3 to 4 times that of Ni-hard Steel.

Related products

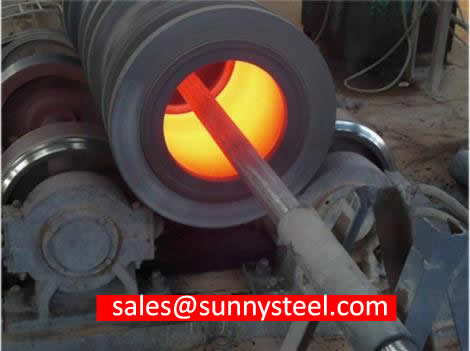

Centrifugal casting molding

Cast basalt pipe adopt magma centrifugal casting molding, then go through the tunnel kiln to annealing, and over a period of open storage to eliminating naturally the residual internal stress of cast basalt pipe

“It’s stone, but not as we know it!”

Basalt casting was used as a replacement to iron and steel which was in short supply after WWII – the crushed natural basalt is heated back to molten lava and then poured into moulds to make components such as pipes and floor tiles, which are incredibly hard wearing and abrasion resistant.

Cast basalt can be formed into a diverse range of shapes and surface patterns – including bespoke designs (min 325m2). During the cooling process the surface of the material achieves a glass-like patina, with an iridescence and texture that is unique to each piece.

Cast basalt tiles lined fittings

Cast basalt pipe adopt foam packaging, then in accordance with the specifications to put them into wooden cases, sometimes them can be directly loaded into the compartment or container.

Cast basalt tile compounds

Cast basalt tile compounds

Cast basalt tile fitting

Cast basalt tile fitting

Cast basalt tile lined elbow

Cast basalt tile lined elbow

Cast basalt tile lined elbow

Cast bastle tiles construction site

Cast basalt tiles is mainly used in thermal power plants, steel mills, mines and other parts with heavy wear, such as raw coal bunkers, mine bins, coal unloading trenches, hoppers, ore troughs, flotation machines, chutes and other parts.

Cast bastle tiles construction site Cast bastle tiles construction site Cast bastle tiles construction site Cast bastle tiles construction site Cast bastle tiles construction site Cast bastle tiles construction site
Cast bastle tiles construction site Cast bastle tiles construction site Cast bastle tiles construction site Cast bastle tiles construction site Cast bastle tiles construction site

Main Specification Of Cast blast lined pipe and fittings

Cast Basalt Pipe DN
(mm)
Standard Steel Pipe OD
(mm)
Cast Basalt Thickness
(mm)

Length
(mm)

80 159 25 4000
100 168 17.5

20
4000
6000
8000
125 195
150 219
175 245 6000
8000
10000
12000
200 273
225 300
250 325
275 345
300 377
350 426
400 478 20
25
450 529
500 600 25
550 650
600 720 30 6000
650 770
700 820
750 870
800 920

Other specifications of cast steel pipe lined with basalt can be manufactured according to customer technical requirements. Suitable for large-diameter basalt lining steel pipes with a nominal diameter greater than 800mm. Generally, according to the running status of the pipeline, different cement is used to fix the basalt brick inside the finished steel pipe to complete the basalt lining steel pipe. Its advantages are good wear resistance, wide range of use, basically not limited by the size of the pipeline and low cost of pipeline installation.

Comparision Chart

Comparison of Ceramic lines with few other materials under standard conditions :

Material Thickness(mm) Approx life ( Months )
Mild Steel 10 3-5
Cast Iron 20 6-8
Ni-Hard 20 12-14
Cast Basalt 30 20-25
Ceramic 10 35-40

Ceramic lined equipment and bends

Hard & Compact Smooth & Inner Withstands High-Abrasion & Corrosion In any of the process industries especially Sled and Cement corrosion and abrasion lead to significant downtime of the plant. Further, the useful life or the equipment itself may get impaired because of the high abrasive nature of the materials being used. Thus, ‘wear mechanism’ results in hut down, replacement, etc., which is costly, resulting in loss to tilt: tunic of millions of dollars.

Characteristics

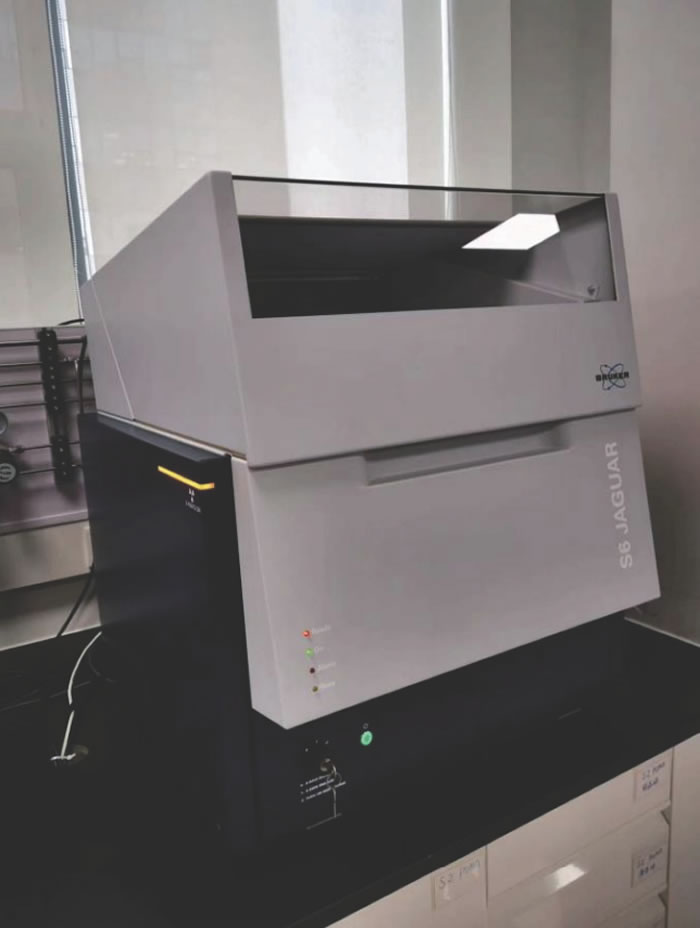

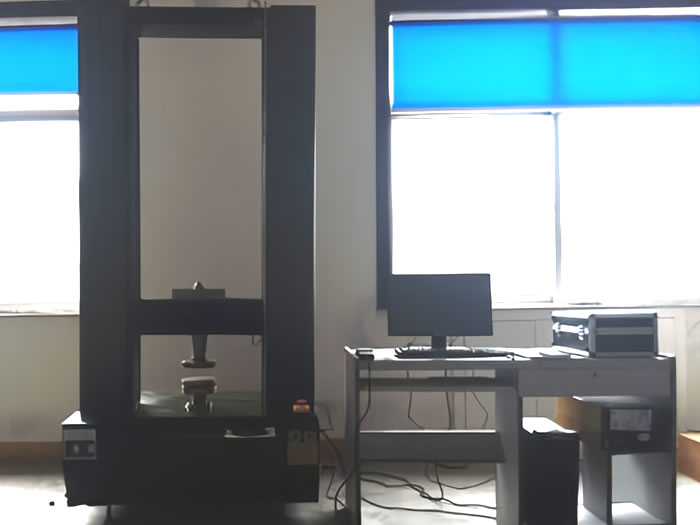

Technical details:


Application area of cast basalt products

Cast basalt can be used for the lining of pipework, chutes, bunkers, cyclones, and hoppers. It has become the global standard in areas such as ash slurry pipework, often used at fossil-fuel power stations. It is an all-round cost-effective and adaptable lining material that extends the life of equipment in pipe or tile form where affected by erosion.

Cast basalt is well-proven in a variety of industries as a cost-effective, long-lasting lining material used to extend the operating life of equipment manufactured or lined with lower-wearing materials such as steel, cast iron, rubber, and polyurethane.

Cast basalt lined steel pipe, as both a wear—resistant and corrosion—resistant materials, the transport properties of wear or corrosion of materials, after thirty years of practical verification, cast basalt lined steel pipe can be well done.

Cast basalt is also used in cement plants for making air separators, chain conveyor, silica hoppers, nozzles, coal hoppers, cement hoppers, cyclones, raw mill ducts, chutes, thick slurry lines, mixers, grate cooler housing, coal ventury etc.

  • Tailings pipeline
  • concentrate pipeline
  • pipeline of transporting ore
  • pipe of transporting ash and residue in electric power station
  • pipe for transporting coal—water
  • pipe of sending sand by wind power
  • The concentration of slurry chute
  • edge—milling machine
  • disk feeder
  • slurry chutes
  • blast flush fines chute
  • blast furnace slag ditch
  • raw ore chute
  • funnels of autogenously mill
  • classification return mines chute
  • overflow launder
  • coke—conveying chute
  • saturator
  • acid separator
  • cyclone separator
  • sand mixed machine
  • punch mine ditch in mining industry
  • storage tank mine blast, coke funnel
  • all kinds of chutes, funnels, storage bin andso on.
  • load and unload material chute in fire—resistant industry
  • centrifugal concentrator punch mine launder

Cast basalt composite pipes used for years

  • hydro cyclone
  • precipitator
  • pickling tank
  • slag conveyor
  • mixing machine downhill plate
  • conveying equipments need wear protection

Design aspects

The bend radius should be minimum 3 times of the nominal bore. At discharge end of each bend, cast basalt lined straight pipe of length 5 to 12 times the nominal bore must be used.

Design aspects

Packaging and delivery of cast basalt products

Cast basalt pipe adopt foam packaging, then in accordance with the specifications to put them into wooden cases, sometimes them can be directly loaded into the compartment or container.

Pack cast basalt pipes Pack cast basalt pipes Shipping packing cast basalt pipes Shipping packing cast basalt pipes

Shipping packing

Wear-resistant cast basalt slabs

Wear-resistant cast basalt slabs

Wear-resistant cast basalt slabs Cast basalt composite pipeline for ash discharge port of power plant

Cast basalt composite pipeline for ash discharge port of power plant

Packing customize bend Packing customize bend Packing customize bend Packing customize bend Packing customize bend Shipping packing cast basalt pipes Cast basalt tiles are packed in wooden cases

Cast basalt tiles are packed in wooden cases

Cast basalt tiles are delivered to sea port

Cast basalt tiles are delivered to sea port


What is Cast basalt

Cast basalt is a mineral of exceptionally high abrasion resistance, unlimted resistance to moisture, high compressive strength and resistance to virtually all acids and alkalis and is completely corrosion free.

Cast basalt

Cast basalt is produced by melting selected natural basalt broken into sizes of 20-50 mm in shaft furnaces at tempreatures around 1,300C, following by casting at which the metled basalt forms uniforms pherolithic crystals hence producing its typical physical propertics, in particular its exceptional hardness and wear-resitance.

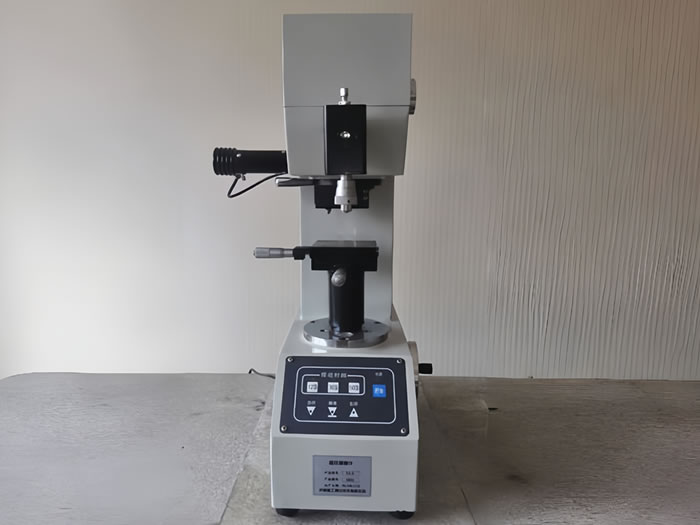

Cast basalt reaches a value of hardness of 8( min ) on the Moh's hardness scale. for comparision : the highest value10is only attained by dimonds. by virtue of these properties,the silicate cast basalt provides outstanding protection against abrasion and scrubbing.

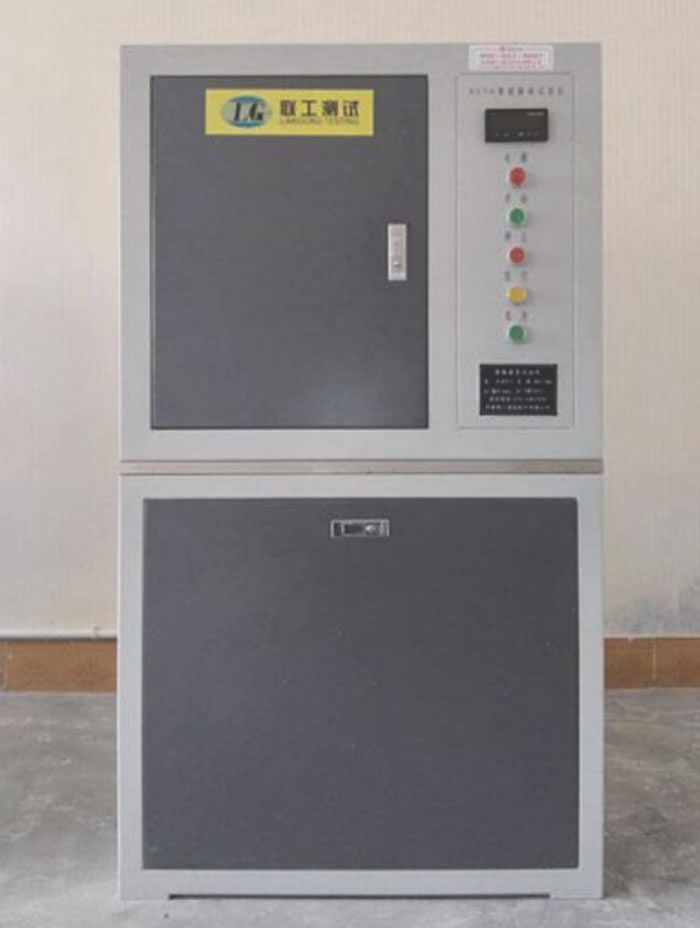

however, it is marked by asertain sensitivity ti impacts.Under Normal services conditions, cast basalt withstands tempratures up to approx.+ 350C or-40C. However Cast basalt sholud not be subjected ti temprature shocks.

Sizes : Cast basalt produces are manufactured as tiles, from pieces and segments. straight pipes are spun-cast, available for nominal bores of 32 to 600 mm with the wall thickness ranging from 20 to 30mm and a standard lenght of 500mm.samller nominal bores of straight pipes, pipe segment for radill of 40 to 3,000mm of vatrious angles, as well as special formpiece linings are pre dominately sand-cast. The standard wall-thickness is 20mm. depending on the respective quantity, steel moulds can also be used, the wall thickness in those cases usually being 30 to 40mm.

Cast basalt lined pipe can be mainly used as abrasive material and ash handling system like chute slip trough, funnel, silos, a variety dust catcher, revolving-flow machine, various scraper transport planes, all the feeder liner. Laying the ground all types of chemical plants, it can be for lining picking tank or storage of corrosive substance of the storage room.

According to customer requirements along with cast basalt production technology and we can offer various specifications and various shape to meet client's need.

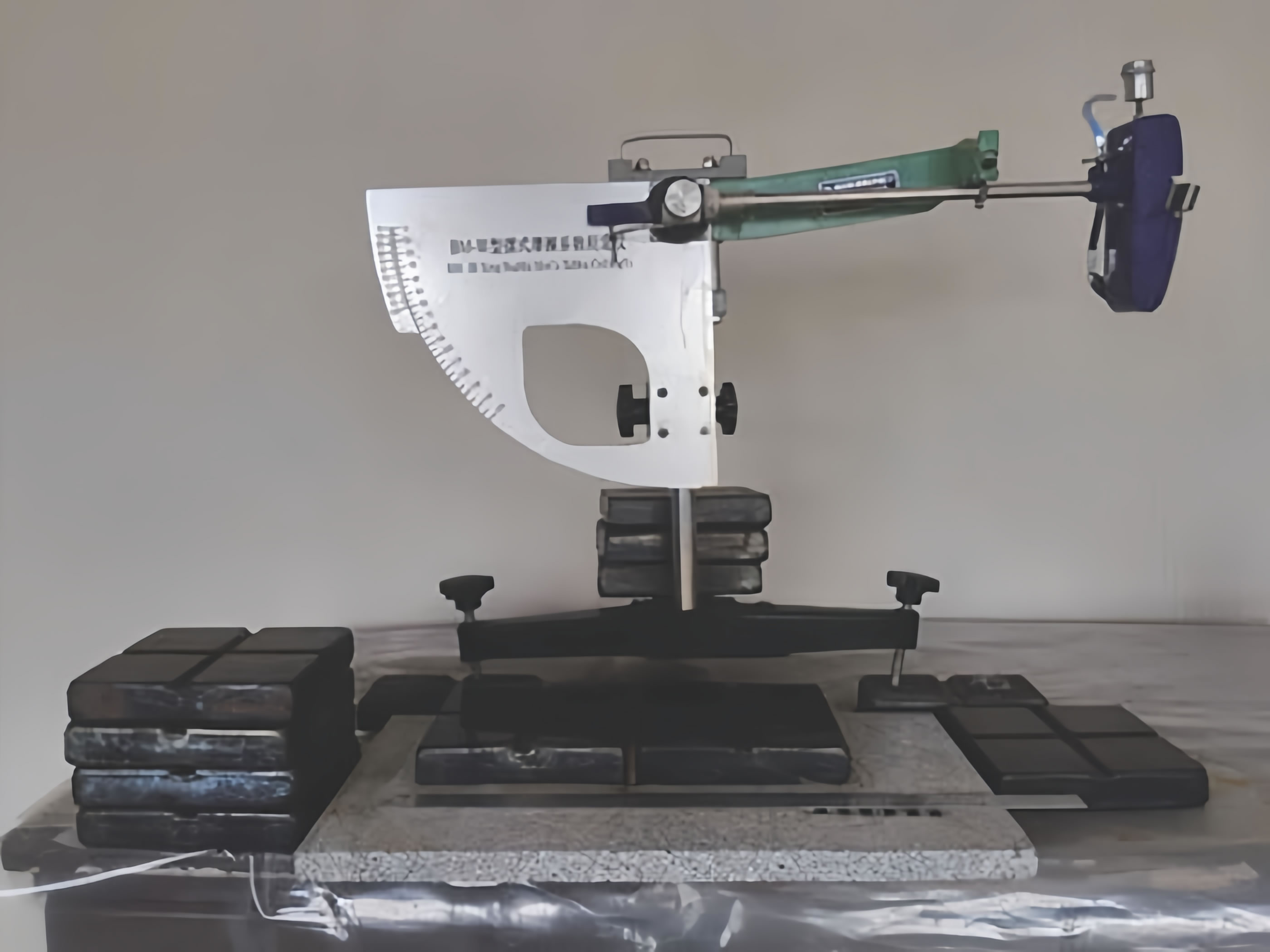

Friction Resistance : As more material is passed over Cast Basalt it gets polished up thereby reducing friction further. Cast Basalt improves in service after getting polished. Wetting also improves its performance in practical applications.

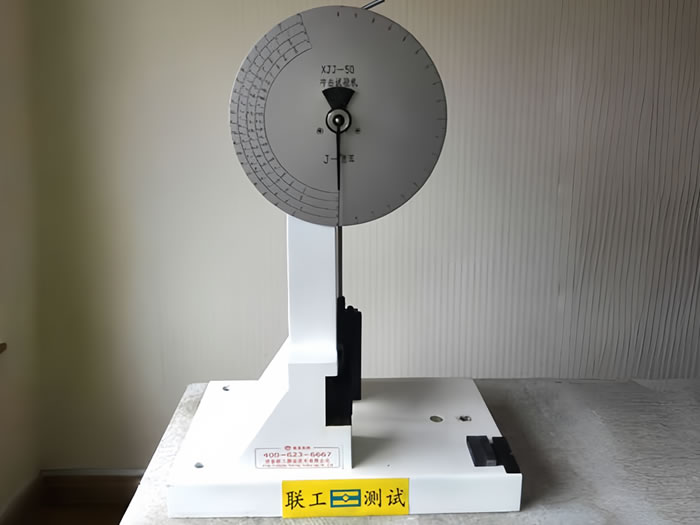

Impact Resistance : Direct Impact Resistance at 90 degree is low like all other ceramics, but it can be increased with proper installation by reducing the angle of impact. Cast Basalt is the best wherever sliding abrasion exists. Moreover, external impact strength of composite basalt pipe (enclosed in M.S. Shell) is always more than that of bare Ni-hard Pipe.

Chemical Resistance : Cast Basalt is almost absolutely acid/alkali resistant (except Hydrofluoric Acid) and hence corrosion resistant.

Weight and Sizes : Basalt Tiles are available in regular shape square of 200 x 200 x 30 mm thick, weighing approx. 90 kg/sq m; whereas bends and pipes are lined using Basalt Cylinders of various standard sizes from 50NB upto 500NB.

Temperature : Cast Basalt withstands temperature up to 4500 oC.

Design Aspects


Cast basalt produce process

Cast basalt process

Processing technology and application of cast basalt lined pipe

Cast basalt pipe is a kind of silicate crystalline material that has been produced and processed. It uses natural rock (basalt, diabase and other basic rocks) or some industrial waste slag as the main raw material. After melting, pouring, crystallization and annealing and other processes. Cast stone has excellent wear resistance and corrosion resistance. Cast stone products mainly include cast stone slabs, cast stone pipes, cast basalt lined pipes, jacketed cast stone pipes, cast stone wear-resistant expansion joints, cast stone wear-resistant valves, cast stone powder and various wear-resistant and resistant cast stone powders as raw materials. Putty slime, etc. Has been widely used in electric power, mining, coal, metallurgy, chemical, construction and other industrial sectors severely worn and corroded parts and equipment.​​

the cast basalt lined pipe is composed of the inner lined cast stone pipe, the outer steel pipe and the cement mortar filling layer between the two. It integrates the wear resistance and corrosion resistance of the cast stone pipe, the toughness of the steel pipe and the consolidation of the cement mortar. In one. It improves the adaptability of the Product to various complex working conditions. At the same time, the use of cement mortar as a filler can make the inner surface of the steel pipe in an alkaline medium, and the surface of the steel pipe will produce a purification film, which can prevent corrosion. It is resistant to wear, corrosion, and high pressure, and is safe and convenient to transport.

​​

Cast basalt lined pipes are divided into straight pipes, curved pipes, tee (cross) pipes, reducing pipes, etc.​​

The diameter series of the cast stone composite elbow is the same as that of the cast stone composite straight tube, and its turning radius and center angle are made according to user requirements.​​

Non-standard specifications of cast basalt lined pipes can be made according to customer’s technical requirements. For large-diameter cast basalt lined pipes with a nominal diameter of more than 800mm, different cements are usually used to paste the cast stone plates on the inner wall of the well-processed steel pipes according to the operating conditions of the pipe fittings to form an integrated cast basalt lined pipe. Its advantages are good wear resistance, wide application range, small size limitation of pipe fittings, and low cost of pipe fittings.


Cast basalt Process

Natural gas is used for melting basalt stone in melting furnace. Natural gas is currently very clean and environmentally friendly fuel. No any pollution. To the customer requirements choose environmental protection material that is a good choice.

The product processed from cast basalt is a new type of silicate crystalline material. Using natural rock (basic database, shale, etc.) or industrial waste as the main raw material components, smelting, casting, heat treatment and other processes are regularly arranged, crystalline, hard, and fine-textured metal industrial materials. Casting basalt has an excellent high abrasion and high resistance. Abrasiveness. Corrosion resistance.

Wear-Resistant Material Preparation

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed ultrices elit eget sem luctus interdum. Morbi a sapien ut dolor placerat consequat. Nulla facilisi. Vivamus at lacinia elit. Phasellus at faucibus lacus. Duis in enim pharetra, lobortis neque id, ultricies sapien. Sed finibus, arcu vitae suscipit vehicula, purus lectus vestibulum tortor, vel semper justo erat eu risus. Nulla ac odio ac turpis blandit porttitor vitae vitae metus. Fusce commodo lacinia leo quis dictum.

Friction Resistance – As more material is passed over Cast Basalt it gets polished up thereby reducing friction further. Cast Basalt improves in service after getting polished. Wetting also improves its performance in practical applications.

Impact Resistance – Direct Impact Resistance at 90 degree is low like all other ceramics, but it can be increased with proper installation by reducing the angle of impact. Cast Basalt is the best wherever sliding abrasion exists. Moreover, external impact strength of composite basalt pipe (enclosed in M.S. Shell) is always more than that of bare Ni-hard Pipe.

Cast basalt pipe
Cast basalt cylinders

Chemical Resistance Cast Basalt is almost absolutely acid/alkali resistant (except Hydrofluoric Acid) and hence corrosion resistant.
Weight and Sizes - Basalt Tiles are available in regular shape square of 200 x 200 x 30 mm thick, weighing approx. 90 kg/sq m; whereas bends and pipes are lined using Basalt

  • Cylinders of various standard sizes from 50NB upto 500NB.
  • Temperature - Cast Basalt withstands temperature up to 450 o C
  • Life - Life of basalt-lined pipe is estimated to be 7 to 10 times that of Cast Iron, and 3 to 4 times that of Ni-hard Steel.
