Integral cast pipe saddle clamp, special matching accessory for boiler tube erosion shields, adjustable mounting holes, high toughness anti-vibration for power station heat exchanger pipeline.

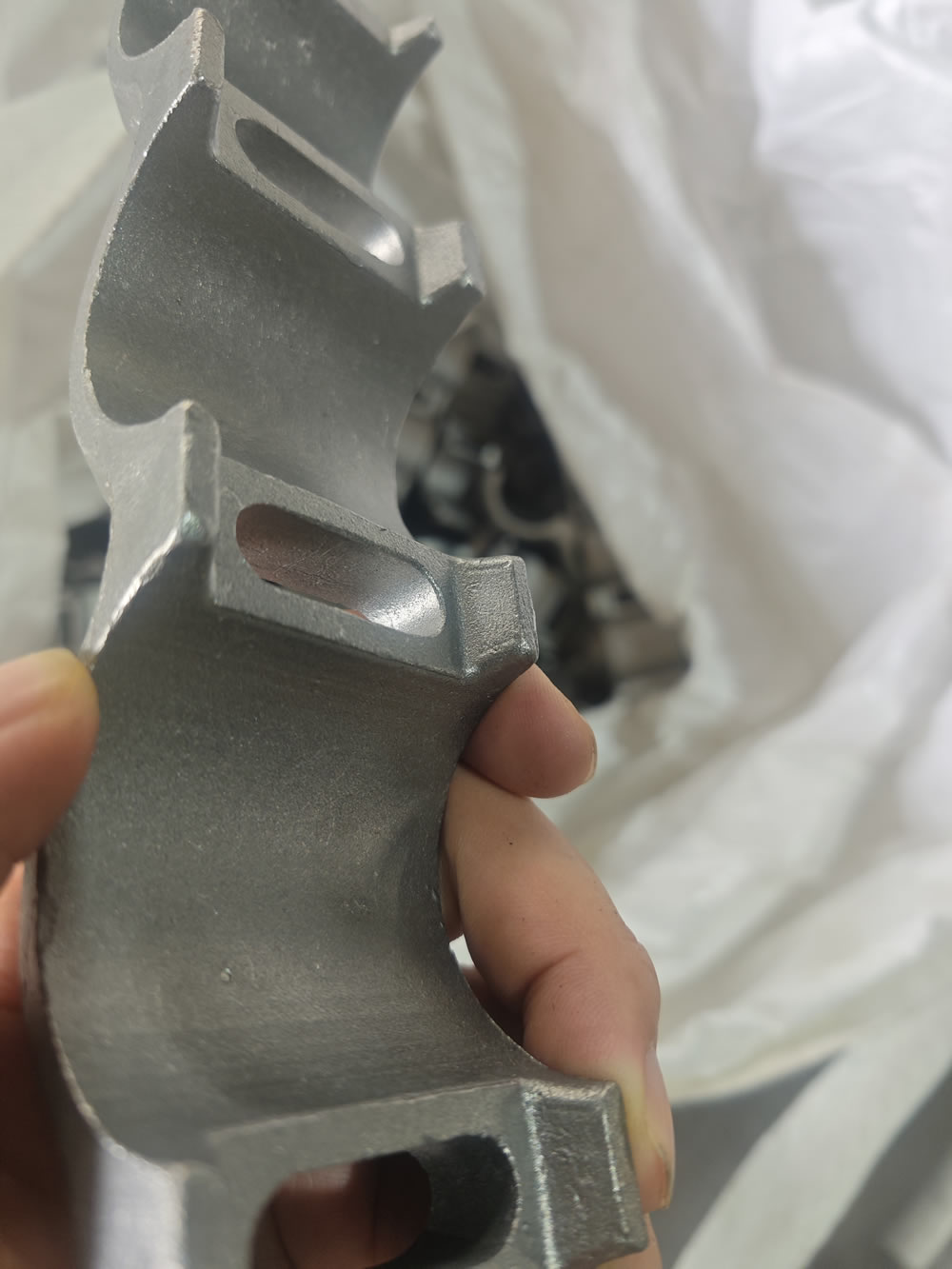

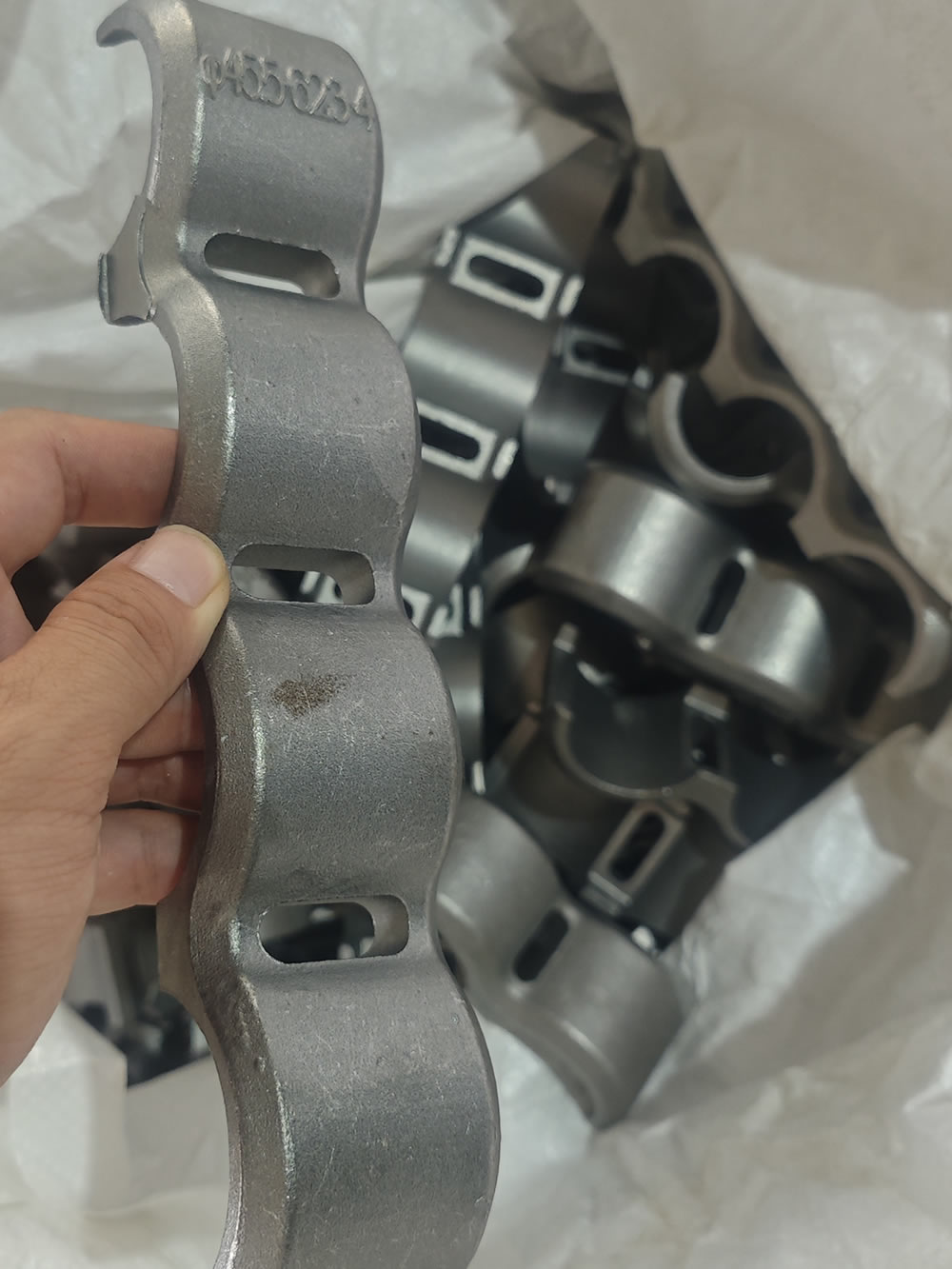

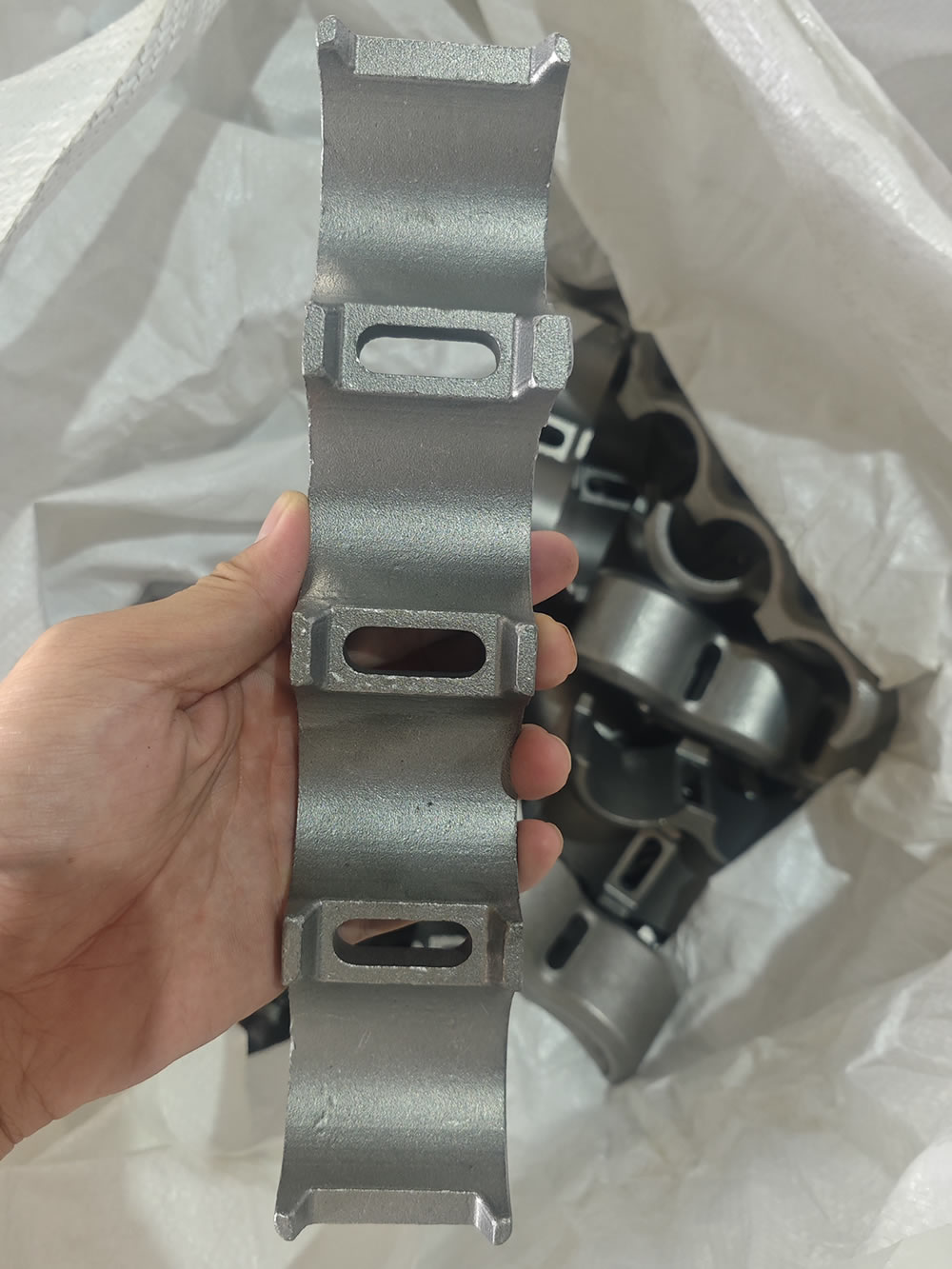

Cast pipe clamp is an integrated saddle-type cast fastener specially matched with tubes erosion shields for thermal power boiler heat exchange tubes. It adopts one-piece casting forming, with smooth inner arc closely fitting the outer wall of boiler tubes, used to lock and fix erosion shields on tube surfaces to prevent displacement under high-temperature flue gas scouring and vibration.

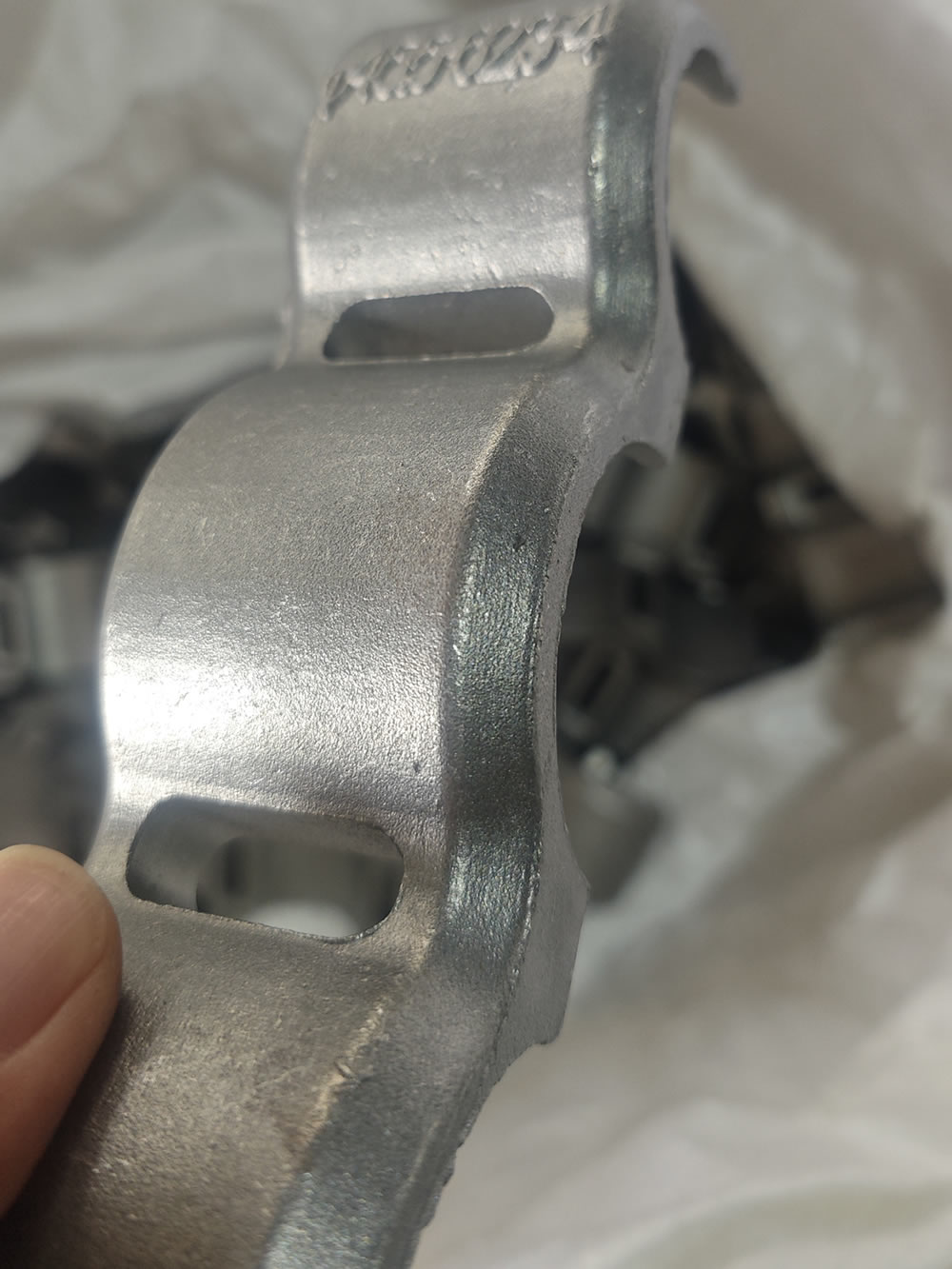

Both sides of the clamp are designed with long oval adjustable mounting slots, which allow horizontal fine-tuning during on-site boiler maintenance, effectively solving the installation deviation problem caused by tube layout tolerance. The body is thickened cast, with excellent toughness and vibration resistance, and will not crack or deform under long-term high-temperature working conditions of the boiler furnace.
As a complete supporting accessory of boiler tube erosion shields, it forms a set of tube anti-abrasion protection system together with erosion shield and snap ring, widely used in CFB boilers, waste heat boilers and conventional power plant economizer, superheater and reheater tubes.
| Casting Material | Core Feature | Boiler Working Condition |
|---|---|---|
| HT200 Grey Cast Iron | Cost-effective, good vibration absorption | Medium & low temperature conventional boiler tubes |
| QT450-10 Ductile Iron | High toughness, anti-crack, temperature resistant | CFB circulating fluidized bed high vibration boiler |
Selection Tip: QT450-10 ductile iron cast pipe clamp is the preferred solution for CFB boilers with severe flue vibration.
| Matched Tube Outer Diameter (mm) | Clamp Total Width (mm) | Adjustable Slot Range |
|---|---|---|
| 32 / 38 / 42 | 160 | ±12mm |
| 51 / 57 / 60 | 220 | ±18mm |
| 76 / 89 | 290 | ±22mm |
Custom special arc size & hole spacing available for non-standard boiler heat exchanger tubes.
| Product Name | Function | Application |
|---|---|---|
| Tubes Erosion Shields | Tube surface anti-abrasion protection cover | Economizer / Superheater tubes |
| C-shaped Snap Ring | Auxiliary lock for erosion shield | Small diameter boiler tubes |
| Snap Ring | Circular fixing fastener | Medium diameter heat exchange tube |
| Cast Pipe Clamp | Saddle type main fixing clamp | All size boiler tube shield assembly |
Main installation position: economizer, superheater, reheater heat exchange tube bundle anti-wear protection assembly.
| Item | Cast Pipe Clamp | Stamped Pipe Clip |
|---|---|---|
| Body Thickness | Thick integral casting | Thin single steel sheet | High Temp Vibration Resistance | Excellent, no fatigue crack | Poor, easy loose & deform |
| Installation Adjustment Range | Large long oval slots | Fixed small round holes | Boiler Service Life | 3~5 years stable | 6~12 months easy failure |
For long-term boiler operation, cast pipe clamp is more cost-effective and reduces shutdown maintenance frequency.
1. Cover the boiler tube surface with tubes erosion shield first, align the position of the protective cover.
2. Buckle the cast pipe clamp on the outside of the erosion shield, make the inner arc fully fit the shield surface.
3. Adjust horizontal position through long oval slots according to tube bundle layout, then lock high temperature bolts and washers.
4. During boiler overhaul, check clamp deformation and bolt looseness regularly, replace cracked cast clamps in time.
5. Avoid heavy hammer knocking the cast clamp during installation to prevent hidden cracks inside casting body.
1. Saddle curved surface fits erosion shield completely, no local pressure damage to protective cover and tube.
2. Extended slotted holes reserve enough tolerance for tube manufacturing & installation errors.
3. Thickened stress concentration area at both ends to resist flue gas long-term vibration fatigue.
4. No sharp corners on inner surface to avoid scratching the surface of anti-abrasion shield.
Support custom mold development according customer boiler tube drawings: special matching arc diameter, adjustable slot size, clamp width, customized high temperature anti-rust coating, engraved project mark on casting surface. Provide installation technical guidance for power plant boiler overhaul projects.
Small batch cast pipe clamps packed with foam inside solid wooden cases. Large bulk goods wrapped plastic film and bundled with steel strips. Complete material test certificates and installation manual attached for power plant project acceptance. Support sea & land transportation, FOB/CIF trade terms available.
