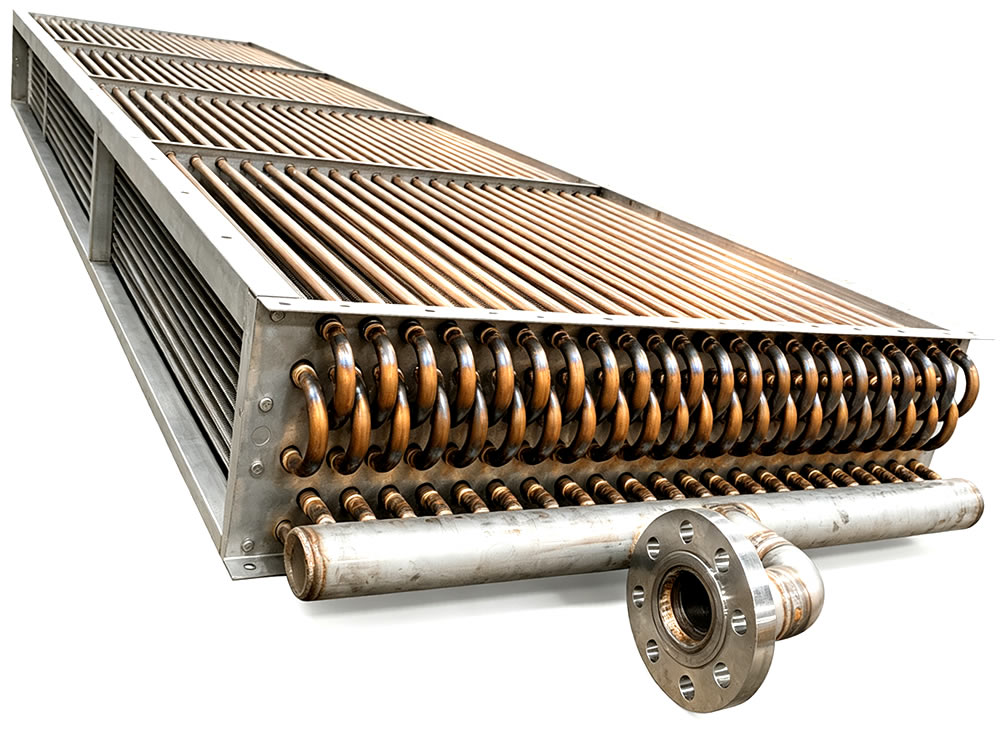

Industrial steam coils use finned tube heat transfer technology to efficiently transfer steam heat for HVAC systems, power plants, process heating and air preheating applications.
Steam coils are high-performance heat transfer components designed to convert steam energy into heated air or process heat. Using finned tube construction, steam coils provide efficient heat exchange for HVAC systems, industrial heating equipment, combustion air preheating and process applications.
Steam coils are available in different configurations including steam distributing coils, blast coils, tube-in-tube non-freeze coils and flexible expansion designs. Different materials and constructions can be selected according to temperature, pressure and operating environment requirements.
Three-coil stackable bank used to pre-heat combustion air at coal-fired power plants.
Steam coil with independent curved tubes allowing internal expansion and contraction.
Triple-circuit coil with 1" stainless steel tubing and copper plate fins.
Stainless steel tube with welded joints and removable stainless steel header.
Carbon steel tubes with copper fins for freeze-resistant performance.
Carbon steel tube with welded joints and aluminum spiral-wrapped fins.
Tube-in-tube non-freeze design for reliable steam distribution.
Steam coils are widely used in industrial and commercial heating systems including:
| Component | Available Materials |
|---|---|
| Tube | Carbon Steel, Stainless Steel, Copper |
| Fin | Aluminum, Copper, Stainless Steel |
| Header | Carbon Steel, Stainless Steel |
| Frame / Housing | Carbon Steel or Stainless Steel |
We manufacture steam coils according to customer specifications, including tube arrangement, fin spacing, connection location and operating conditions. Each coil can be inspected with dimensional checks, pressure testing and quality documentation according to project requirements.
Custom steam coils are available for special industrial applications requiring unique dimensions, heavy duty construction or specific heat transfer performance. Our engineering team can provide solutions for replacement coils, OEM equipment and new heating system projects.

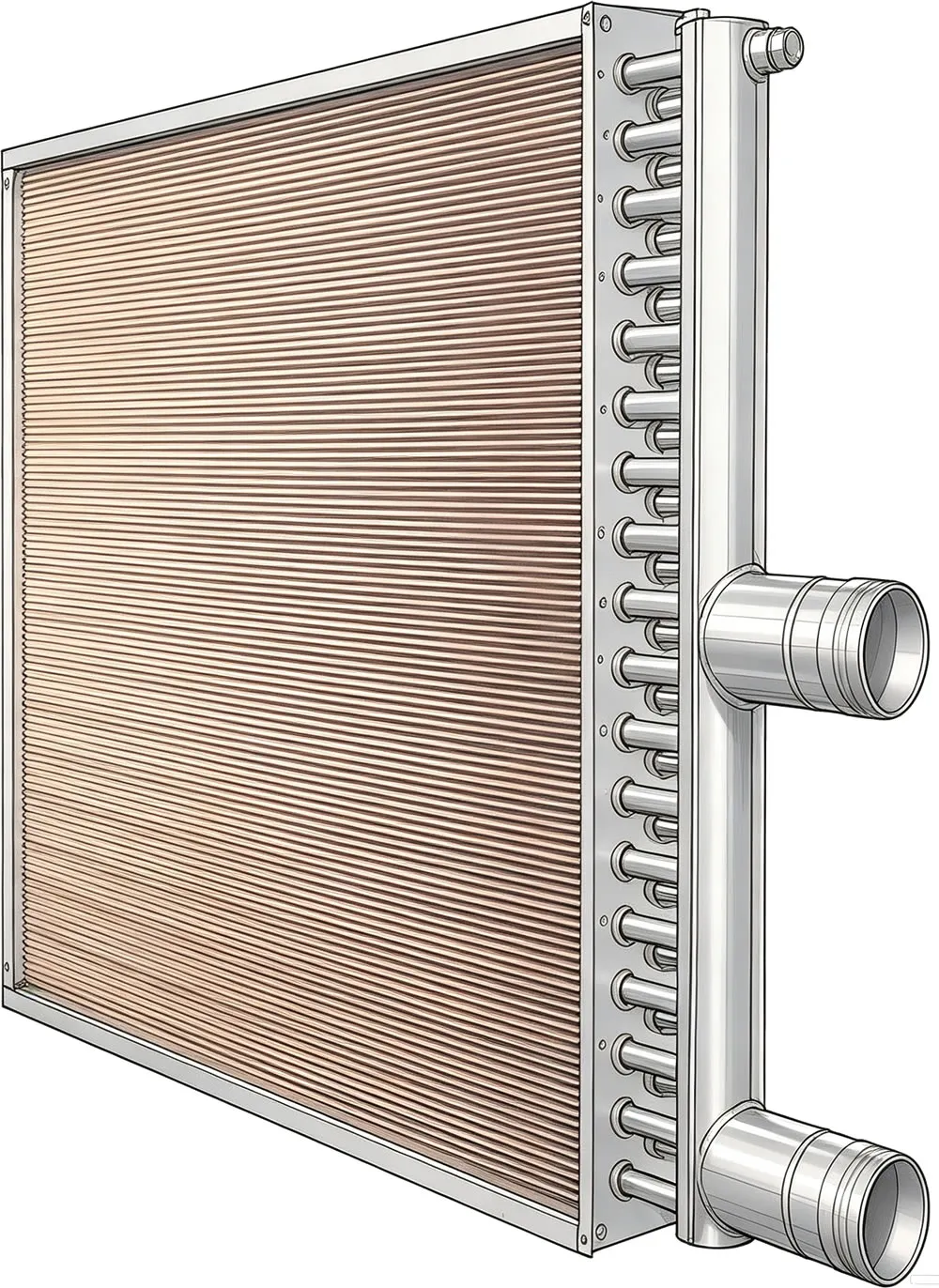

Our steam coils are manufactured using high quality tubes, fins and headers to ensure reliable heat transfer performance and long service life. The coil design can be customized according to airflow conditions, steam pressure, temperature requirements and installation space.
Reliable heating solutions for comfort and process air heating applications.

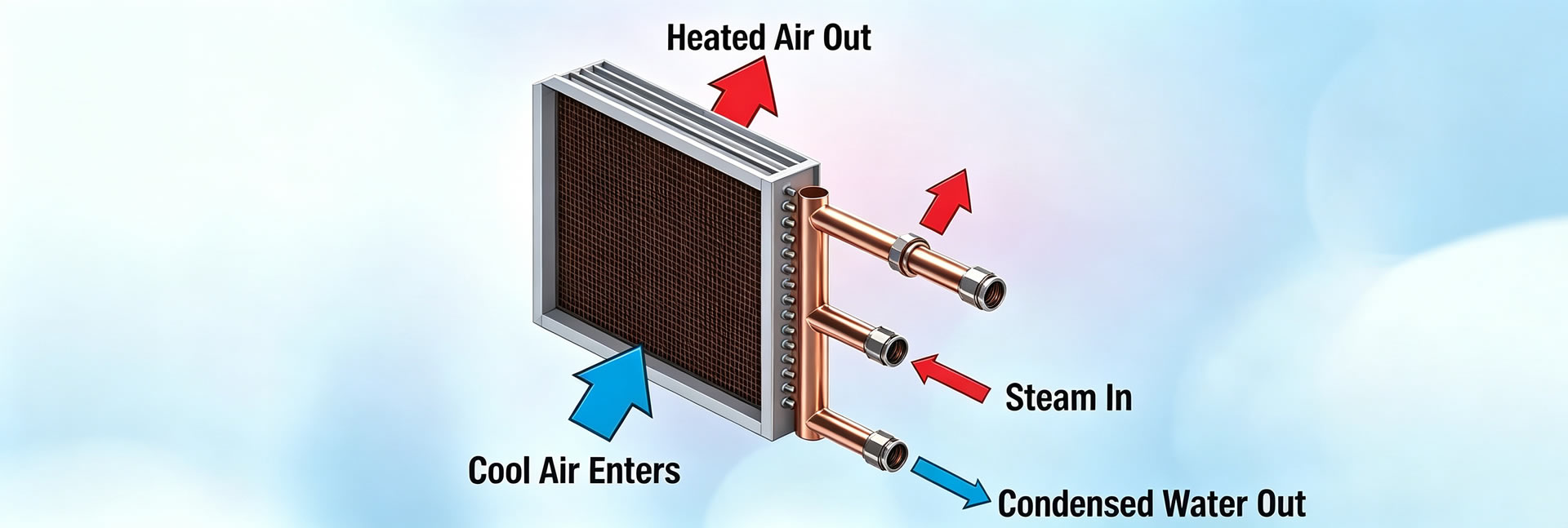

Steam coils transfer thermal energy from saturated steam to air through a combination of convection and conduction. The operating sequence is straightforward and highly efficient:
Custom Engineered Solutions: Marlo Heat Transfer Solutions designs and manufactures steam coils in virtually unlimited sizes, configurations and material combinations. Each coil is engineered to match the specific airflow, pressure, temperature and corrosion requirements of its application.
While all steam coils share the same fundamental principle, two primary construction types are used depending on application conditions and freeze protection requirements.
Steam enters one header and travels in a single pass through the tube bundle to the opposite header.
Feature an inner steam distribution tube inside each outer tube. Steam flows through the inner tube and distributes along the length of the outer tube.
Both coil types achieve the same objective—delivering heated air— but differ in thermal performance, freeze protection capability and application suitability. Proper selection depends on entering air temperature, steam pressure, system layout and operational duty cycle.
