SS410 martensitic stainless half round tube shields, economical thermal & erosion barrier for economizer and low temp superheater tube bundles, complete with matching SS410 C/U snap ring fasteners.

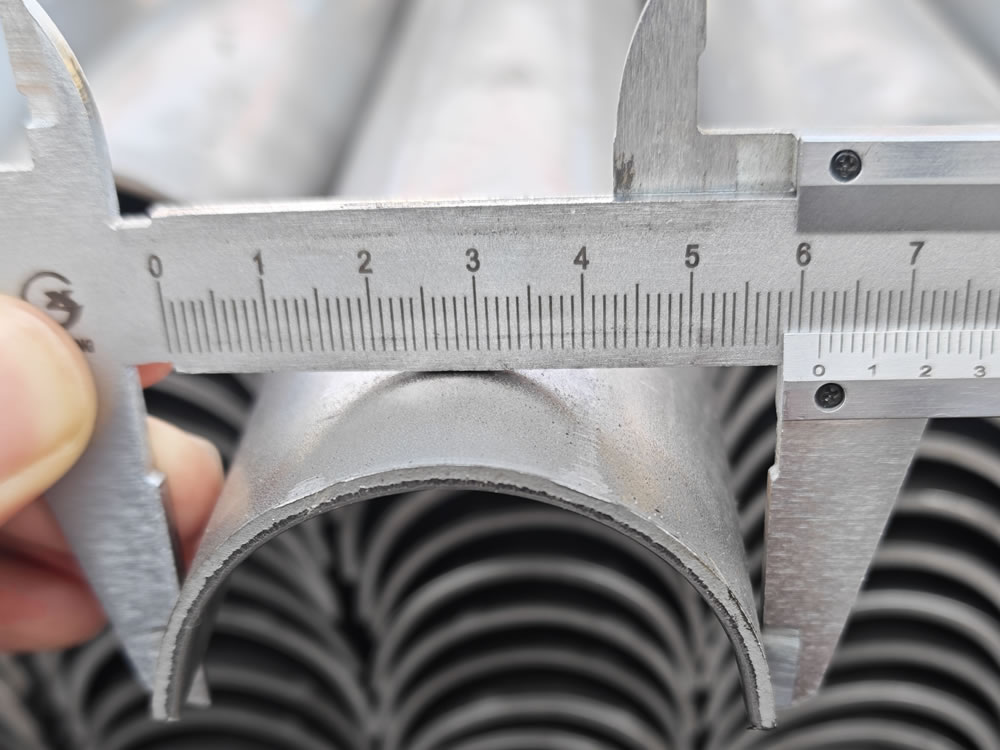

410 stainless steel tube shields, also known as SS410 half round boiler sleeves, are martensitic stainless steel stamped protective casings designed for low-temperature tail flue heating surfaces. Compared with high-nickel austenitic alloys like 309S and 310S, SS410 removes high nickel elements, delivering obvious cost advantages for conventional economizer anti-wear transformation projects with mild fly ash impact and low sulfur flue gas.
Most power plant CFB boilers, biomass boilers and small industrial steam boilers face medium-low temperature flue below 550°C at economizer sections, where fly ash abrasion is moderate without severe high-temperature oxidation. In such scenarios, 410 stainless half round tube shields can fully meet thermal insulation and erosion blocking demands, effectively slowing heat transfer tube wall thinning and avoiding unplanned boiler shutdown caused by tube perforation.
We produce straight half sleeves, inner bend and outer bend wrap shields all in SS410 material, and supply matched SS410 C-type & U-type snap lock fasteners to avoid dissimilar metal galvanic corrosion under long-term flue operation.
410 stainless steel tube shields occupy the economical segment of boiler tube protection products, matching three mainstream anti-abrasion solutions for different flue harshness levels:
Integral hydraulic stamped 180° semicircular sleeve is our core SS410 product. The radian is precisely formed to fit standard boiler heat transfer tube outer diameters without gaps, preventing ash accumulation and concentrated local abrasion. It supports snap ring locking and spot welding two installation ways, easy to disassemble during annual boiler inspection, ideal for mass economizer tube bundle renovation to control overall project cost.
For medium ash impact working conditions where single SS410 plate cannot reach expected service life, we provide SS410 outer shell compounded with thin alumina ceramic lining. It retains the low-cost merit of martensitic steel while greatly lifting overall wear resistance, suitable for medium-sulfur biomass boiler tail flues.
SS410 thin plate can be used as base carrier for high-temperature anti-wear coating spraying, applied on compact dense tube bundles where half round sleeves cannot be installed, forming dual metal + coating protection layer to extend tube service cycle.
SS410 is typical 13% chromium martensitic stainless steel, without nickel element, its chemical composition and mechanical indicators comply with ASTM A240 standard, fully suitable for medium-low temperature boiler flue environment:
| Performance Item | Standard Parameter Value | Test Standard |
|---|---|---|
| Chromium Content (Cr) | 11.50 ~ 13.50 % | ASTM A240 Spectral Test |
| Carbon Content (C) | ≤ 0.15 % | ASTM A240 Spectral Test |
| Tensile Strength (MPa) | ≥ 415 | ASTM A370 Tensile Test |
| Yield Strength (MPa) | ≥ 205 | ASTM A370 Tensile Test |
| Max Continuous Service Temperature | ≤ 550°C | Actual Boiler Application |
Material Selection Reminder: Do not adopt SS410 tube shields for flue temperature over 580°C or high sulfur coal-fired boiler furnace zones; choose 309S / 310S austenitic stainless shields for high temperature and heavy sulfur working conditions.
All SS410 erosion shields adopt integrated hydraulic stamping forming, strict raw material inspection and surface finishing to guarantee long-term flue service stability:
Stock SS410 half round sleeves match mainstream ASME SA179, SA210 heat transfer tube outer diameters, non-standard radian and length support customized mold development:
| Matched Tube Outer OD (mm) | SS410 Plate Thickness (mm) | Shield Total Length Range (mm) | Common Structure Type |
|---|---|---|---|
| 32 / 38 / 42 | 6 / 8 | 100 ~ 1200 | Straight half round single tube sleeve |
| 51 / 57 / 60 | 8 / 10 | 150 ~ 1800 | Straight half wrap / fin protective baffle |
| 76 / 89 | 10 / 12 | 200 ~ 2500 | Outer bend full wrap U-shaped shield |
Note: Extra thick SS410 plate, super long customized sleeves and special large radian bend shields can be produced according to customer boiler layout drawings.
Two mature installation schemes adapt different boiler overhaul cycles and abrasion intensity levels:
All supporting snap lock fasteners adopt identical SS410 stainless material, avoid different metal contact leading to electrochemical corrosion under long-term high temperature flue environment.
| Supporting Product Name | Core Function | Application Scene |
|---|---|---|
| 410 Stainless Half Round Tube Shield | Semicircular outer wall anti-scour wrap for single heat transfer tube | Economizer, low temperature superheater straight tube bundles |
| SS410 C & U Snap Lock Fasteners | Non-weld quick locking clip for half round shields | Small & medium diameter tube bundle inspection-friendly layout |
| SS410 Wave Fin Anti-wear Baffle | Ash impact buffer plate between adjacent finned tubes | Water wall fin transition mild abrasion flue zones |
| SS410 Cast Pipe Clamp | Saddle fixed support for overall tube bundle assembly | Large-scale economizer tube bundle fixed installation framework |
410 stainless steel tube shields are specially developed for medium-low temperature tail flue heating surfaces with mild abrasion and low sulfur content:
Application Limit Tip: SS410 tube shields cannot be used for furnace arch, high temperature superheater above 550°C and high-sulfur coal flue zones, please select 309S / 310S high temperature stainless shields for above working conditions.
| Comparison Item | 410 Stainless Shield | 309S Stainless Shield | 310S Stainless Shield |
|---|---|---|---|
| Max Continuous Service Temp | 550°C | 850°C | 1150°C |
| Sulfur Flue Corrosion Resistance | Suitable only for low-sulfur flue | Medium sulfur resistance | High temperature anti-oxidation, general sulfur resistance |
| Raw Material Cost | Lowest, nickel-free martensitic alloy | Medium, medium nickel content | Highest, high nickel-chromium alloy |
| Primary Installation Position | Economizer low temperature tail flue | Medium-high temperature superheater | Furnace arch ultra-high temperature severe scouring zone |
| Comprehensive Project Cost Performance | Highest for low temp low-sulfur working conditions | Universal medium temperature option | Only for ultra-high temperature special zones |
SS410 martensitic stainless steel has unique welding requirements, standard operation can avoid crack defects and extend shield service life:
1. Handling reminder: Avoid violent knocking and extrusion during transportation and hoisting, prevent invisible stamping cracks on semicircular arc surface.
2. Welding operation rule: Preheat workpiece to 300 ~ 380°C before spot welding, adopt martensitic stainless special welding rod, implement slow air cooling after welding to eliminate welding cold cracks.
3. Snap ring installation check: Ensure full fitting between shield and tube outer wall without gap, symmetrically lock C/U snap rings on both sides to prevent sliding under flue vibration.
4. Annual shutdown inspection: Check SS410 plate thinning thickness and welding crack condition, replace severely worn shields in advance to prevent base tube leakage accidents.
5. Storage protection: Separate finished shields with isolation paper during stacking, seal warehouse to avoid moisture rust before shipment delivery.
The structural and material formula of our SS410 half round tube shields are optimized targeting low-temperature low-sulfur economizer working conditions:
1. Integral one-time stamping semicircular structure eliminates assembly splicing gaps, avoids ash accumulation and local concentrated abrasion of segmented tile protective covers.
2. Nickel-free 13Cr martensitic formula greatly cuts raw material cost, providing economical anti-abrasion solution for mass boiler tube bundle transformation projects.
3. Interchangeable multiple structural forms (straight half sleeve, fin baffle, outer bend wrap) cover all mainstream low-temperature heating surface layout, no secondary cutting transformation required on site.
4. Uniform plate thickness design guarantees synchronous wear speed of whole shield surface, no local premature thinning under uneven fly ash impact distribution.
We provide full customized SS410 half round tube shields produced against customer boiler overhaul drawings, flue temperature and ash abrasion parameters:
Customizable parameters: Matched heat transfer tube outer diameter, SS410 plate thickness, shield total length, semicircular arc radian, wave fin height, outer bend wrap coverage angle.
Special customized options: Extra thick enhanced wear-resistant SS410 plate, oversized outer bend shield, pre-assembled shield + snap ring integrated piece for fast field installation.
Attached technical service: Boiler low-temperature flue anti-abrasion scheme consultation, on-site welding construction guidance, long-term bulk spare parts supply framework contract for power plant annual maintenance.
410 stainless steel tube shields adopt layered isolation shockproof packaging to protect stamped semicircular arc structure from extrusion deformation during cross-border sea and land long-distance transportation:
Small batch small-size shields separated by foam isolation paper and packed into fumigated export wooden cases; large quantity bulk finished products stacked on standard steel pallets, fixed with steel binding strips, whole pallet wrapped with anti-rust stretch plastic film outside.
Multiple international trade terms FOB / CFR / CIF are supported, sea freight and land highway transportation options available based on customer delivery port and delivery schedule requirements.
Each shipment batch attached complete delivery documents: SS410 material spectral test report, dimensional inspection record, installation operation manual, convenient for overseas power plant project customs clearance and equipment acceptance inspection.
