Oxygen Free Copper
High purity oxygen-free copper with excellent conductivity, low oxygen content and superior performance for semiconductor, electrical and vacuum applications.

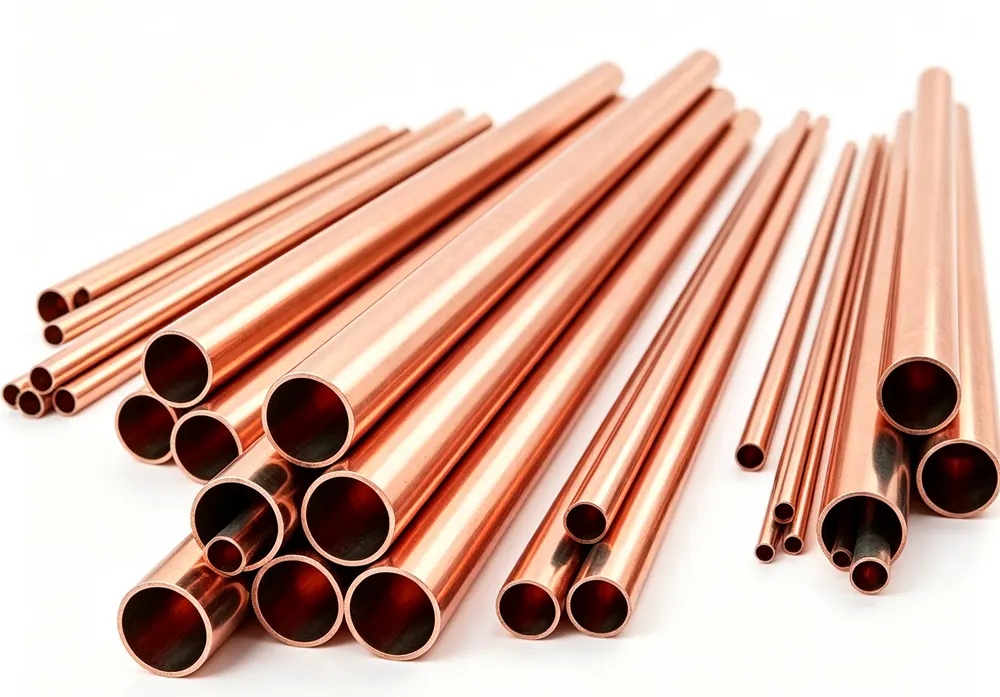

High quality copper tubes supplied in seamless and customized forms for heat exchangers, refrigeration, plumbing and industrial applications.
Copper tube is a tubular copper product manufactured from pure copper or copper alloy materials. It provides excellent thermal conductivity, corrosion resistance, ductility and long service life.
Due to its outstanding heat transfer capability and reliability, copper tube is widely used in refrigeration systems, air conditioning equipment, heat exchangers, plumbing systems and industrial applications.
Common copper tube materials include C10100 oxygen free copper, C10200 oxygen free copper and C12200 phosphorus deoxidized copper, which are selected according to application requirements.
Different copper grades provide different performance characteristics for electrical, thermal and industrial applications.
| Grade | Material Type | Main Features |
|---|---|---|
| C10100 | Oxygen Free Copper | High purity and excellent conductivity |
| C10200 | Oxygen Free Copper | Low oxygen content and high reliability |
| C11000 | Electrolytic Copper | Excellent electrical and thermal conductivity |
| C12200 | Phosphorus Deoxidized Copper | Excellent welding performance and corrosion resistance |
| C44300 | Admiralty Brass | Good corrosion resistance for heat exchangers |
Pure copper tubes contain high copper content, while alloy copper tubes add elements such as zinc or phosphorus to improve strength and application performance.
| Property | Typical Value |
|---|---|
| Copper Content | ≥99.9% for pure copper grades |
| Density | Approximately 8.9 g/cm³ |
| Melting Point | Approximately 1083°C |
| Thermal Conductivity | Excellent heat transfer capability |
| Corrosion Resistance | Excellent resistance to water and atmospheric corrosion |
| Fabrication | Suitable for bending, flaring and welding |
Copper tubes are supplied in various dimensions, tempers and finishes according to international standards and customer requirements.
| Item | Available Range |
|---|---|
| Outer Diameter | 3 mm - 300 mm |
| Wall Thickness | 0.3 mm - 30 mm |
| Length | Standard 3m / 6m or customized |
| Type | Seamless copper tube, straight tube, coil tube |
| Standards | ASTM B75, ASTM B88, ASTM B280, EN 1057 |
| Surface | Mill finish, polished, cleaned or customized |
Sunny Steel supplies Copper Tube materials in various forms to meet different industrial manufacturing requirements.
