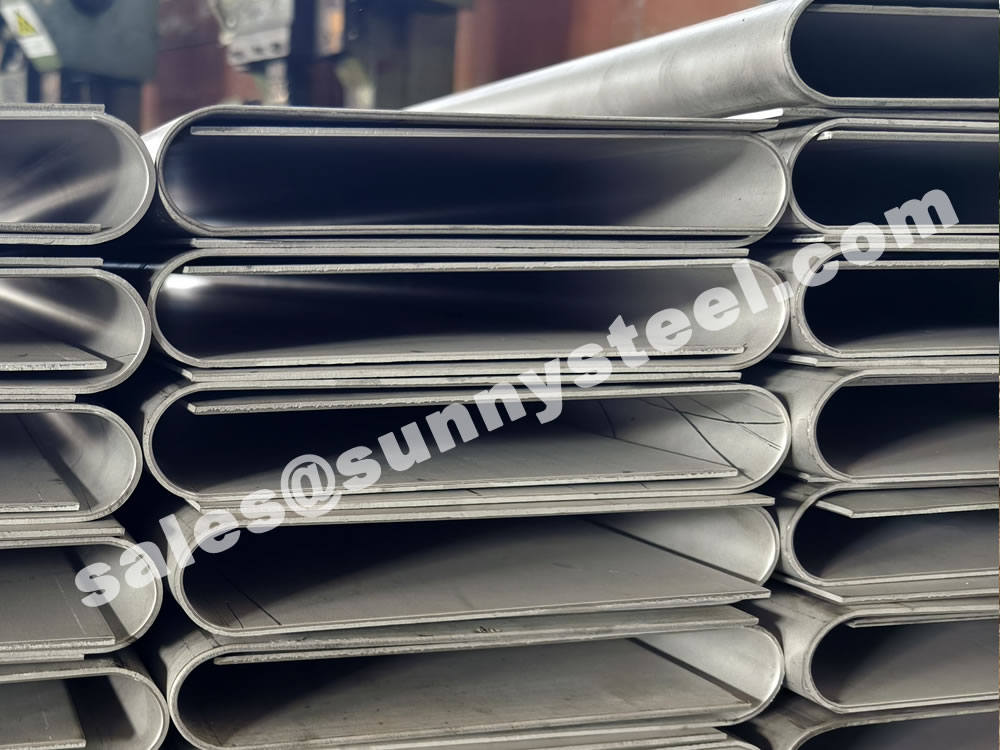

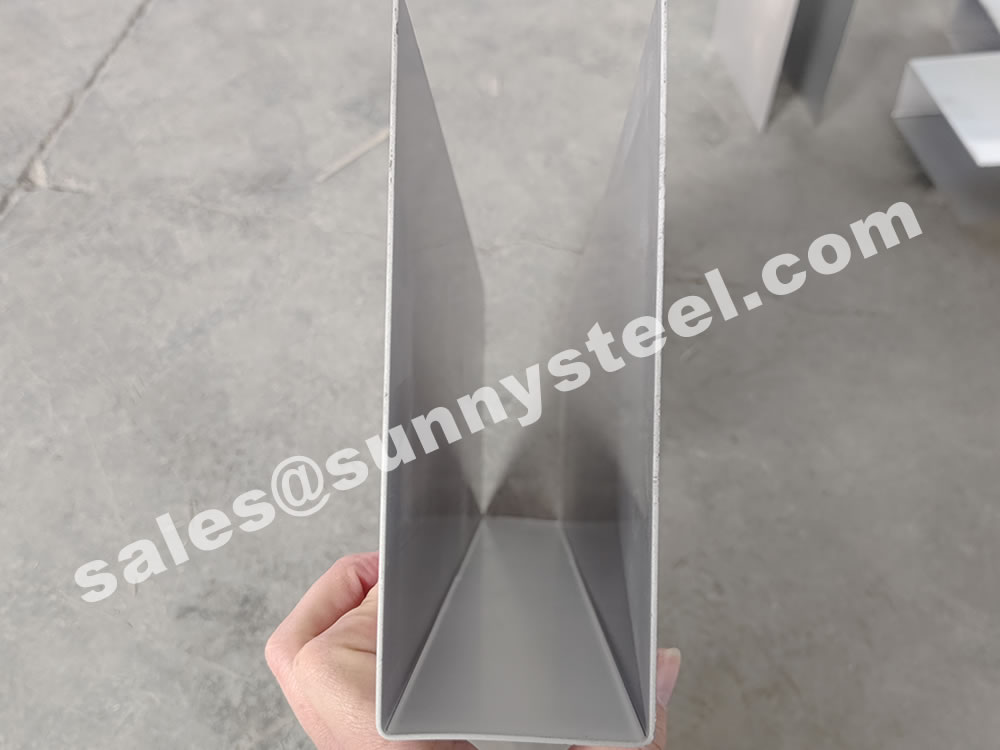

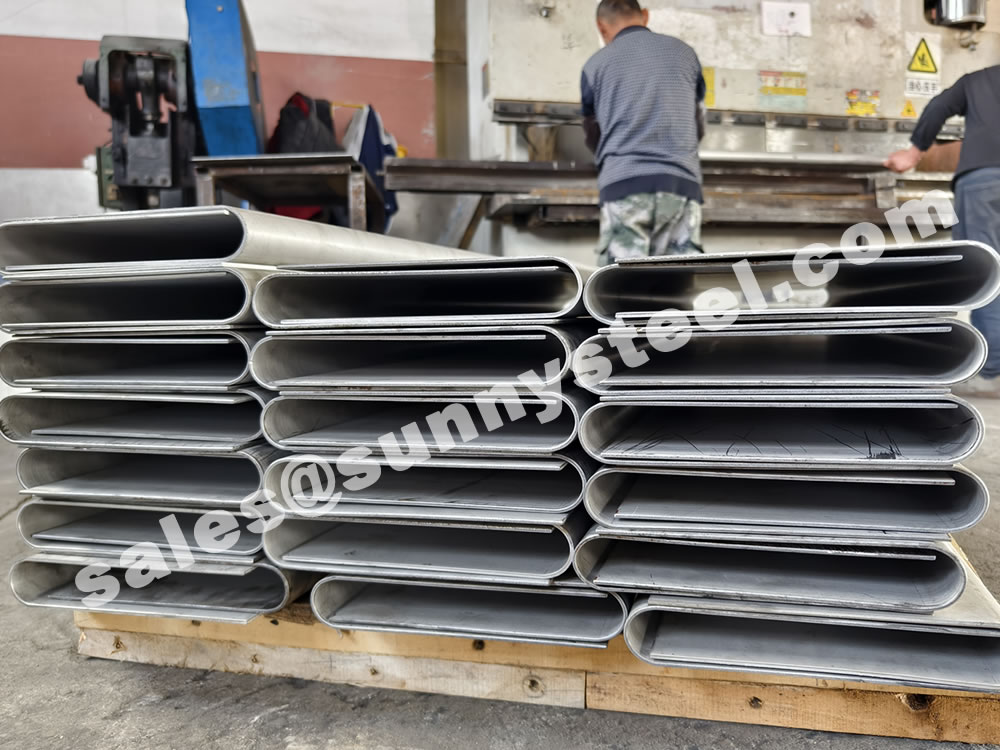

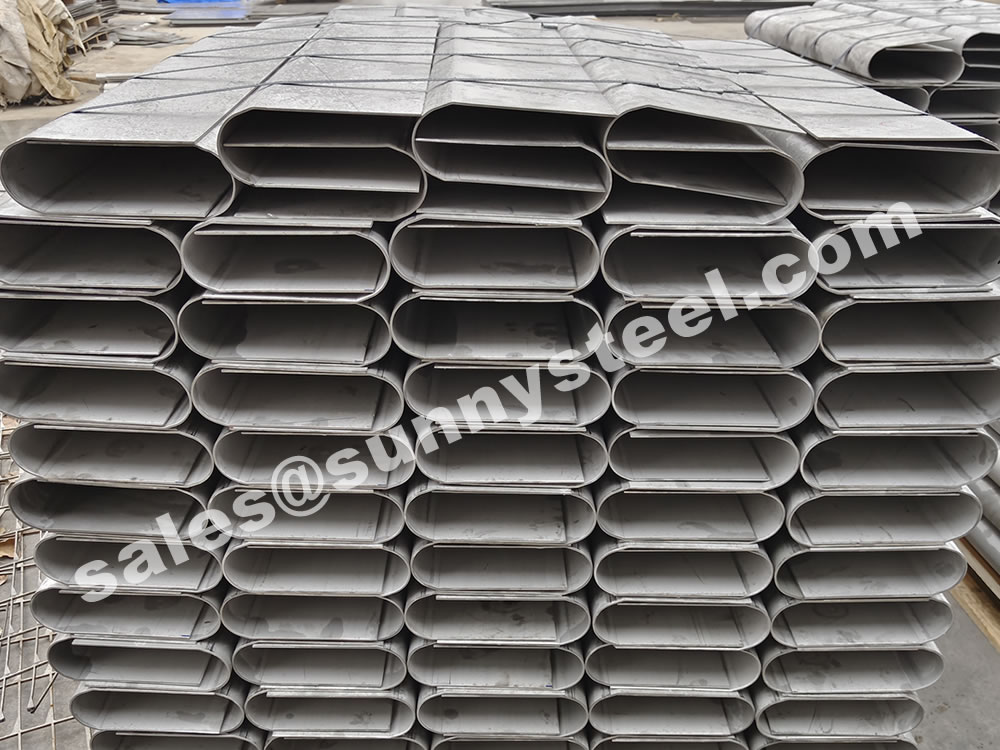

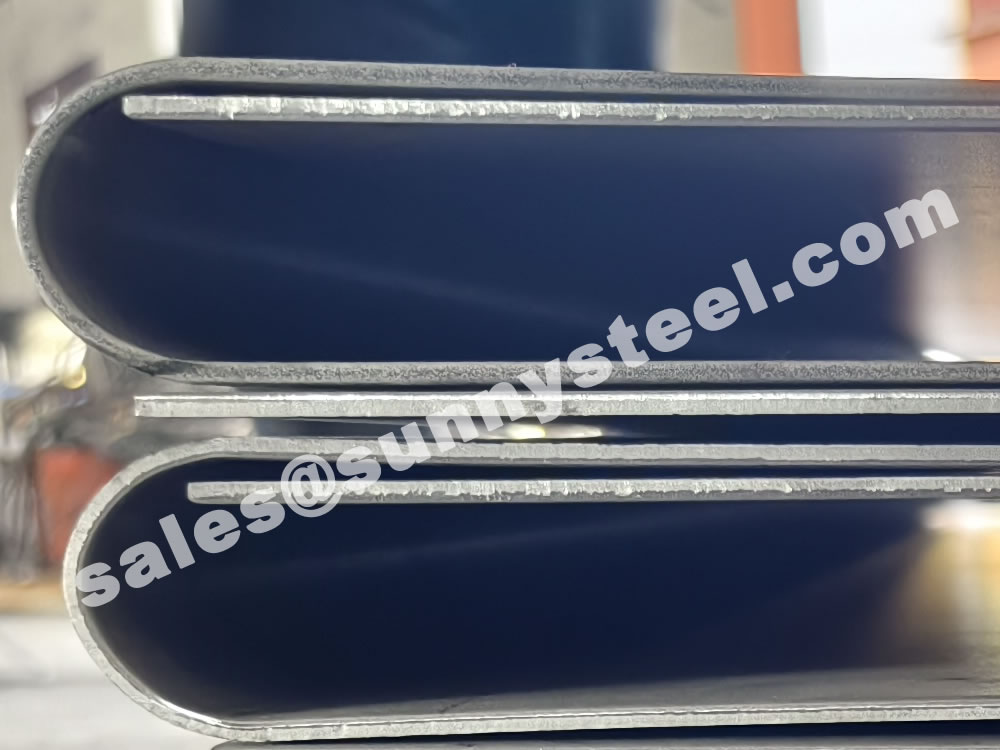

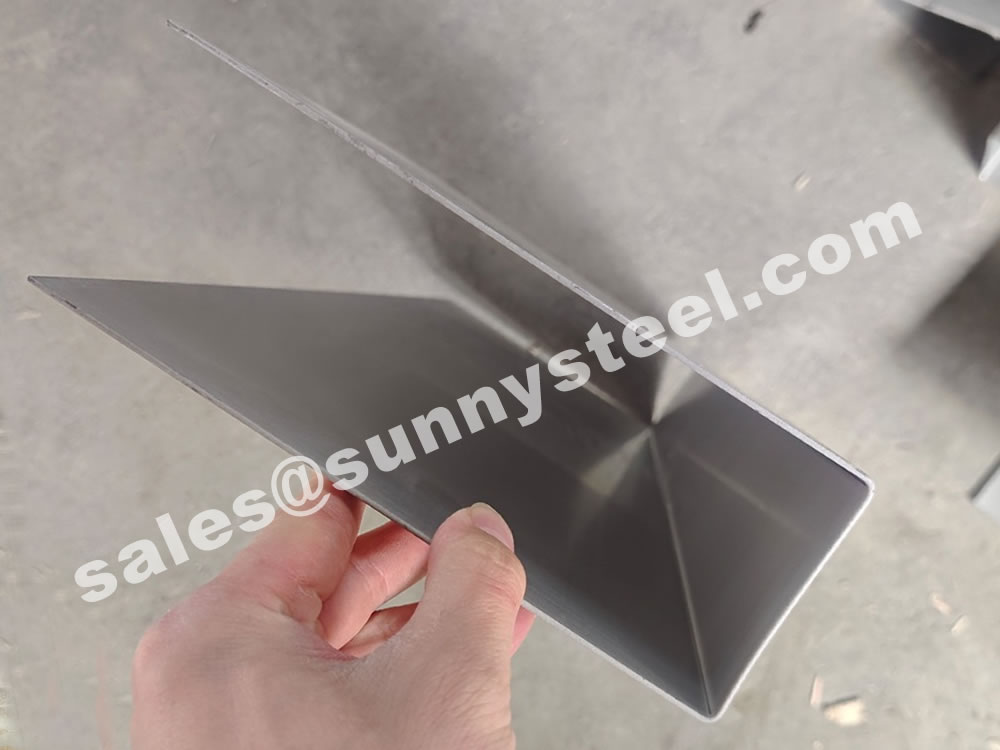

The U-shaped shield is designed to offer robust protection in various industrial and commercial applications.
Made from high-quality materials, these shields provide exceptional durability and reliability, ensuring safety and security in demanding environments.
Download PDFOur U-shaped shields boast several key features:
Using U-shaped shields provides numerous benefits, such as:
Our U-shaped shields undergo rigorous quality control processes to ensure they meet the highest standards of performance and durability. We are ISO 9001 certified, guaranteeing that our products adhere to strict quality management practices.
Steel U-shaped shields are indispensable for protecting machinery, infrastructure, and personnel in various industrial and commercial applications.

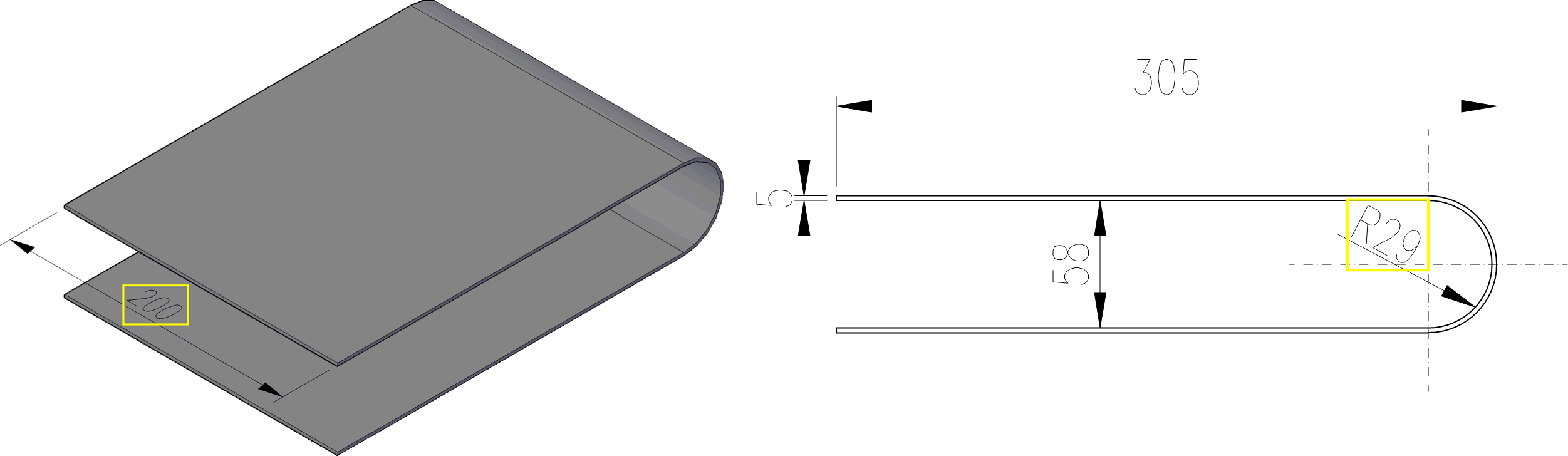

"U'' Shape shield cover plate as per drawing,
Material: SS310,
Size: Length 200mm, Plate Thickness 5mm, Half round outer Dia 68mm Inner Dia 58mm, U shape Width 305mm.
Low Temperature Superheater anti abrasive cover for Convective Pass.
We offer comprehensive customization services to tailor U-shaped shields to your specific needs. Options include material selection, dimensions, finishes, and mounting configurations. Our team of experts is ready to assist you in designing the perfect shield for your application.
U-shaped shields are essential in providing protection, enhancing safety, and ensuring the durability of various structures and equipment across multiple industries. Their customizable nature and robust construction make them suitable for a wide range of applications.
Generally, boiler tubes erosion shields are also installed to prevent further wear of the tubes and cause serious consequences such as boiler explosion.
The main role is to protect the heating surface of the boiler pipes, reduce pipeline wear, and increase the heating surface of the pipes.
The snap ring is a short section that is installed on the pipe in conjunction with the wear-resistant tile. Generally, it is welded to the wear-resistant tile by lap welding, that is, to cover the wear-resistant tile slightly, so it is larger than the wear-resistant tile. The opening arc is around 190-200 degrees, the welding position needs to be set aside to facilitate welding and fixing. The width of the snap ring must not be less than 20mm.
The installation requirements of anti-friction tiles of different shapes are slightly different. Basically, each anti-friction tile is installed with not less than 2-4 snap rings. The snap ring and the anti-friction tile are welded together to prevent expansion due to heat. The tiles fall off, and the joints are required to be fully welded.
Generally, boiler tubes erosion shields are also installed to prevent further wear of the tubes and cause serious consequences such as boiler explosion.
The main role is to protect the heating surface of the boiler pipes, reduce pipeline wear, and increase the heating surface of the pipes.
